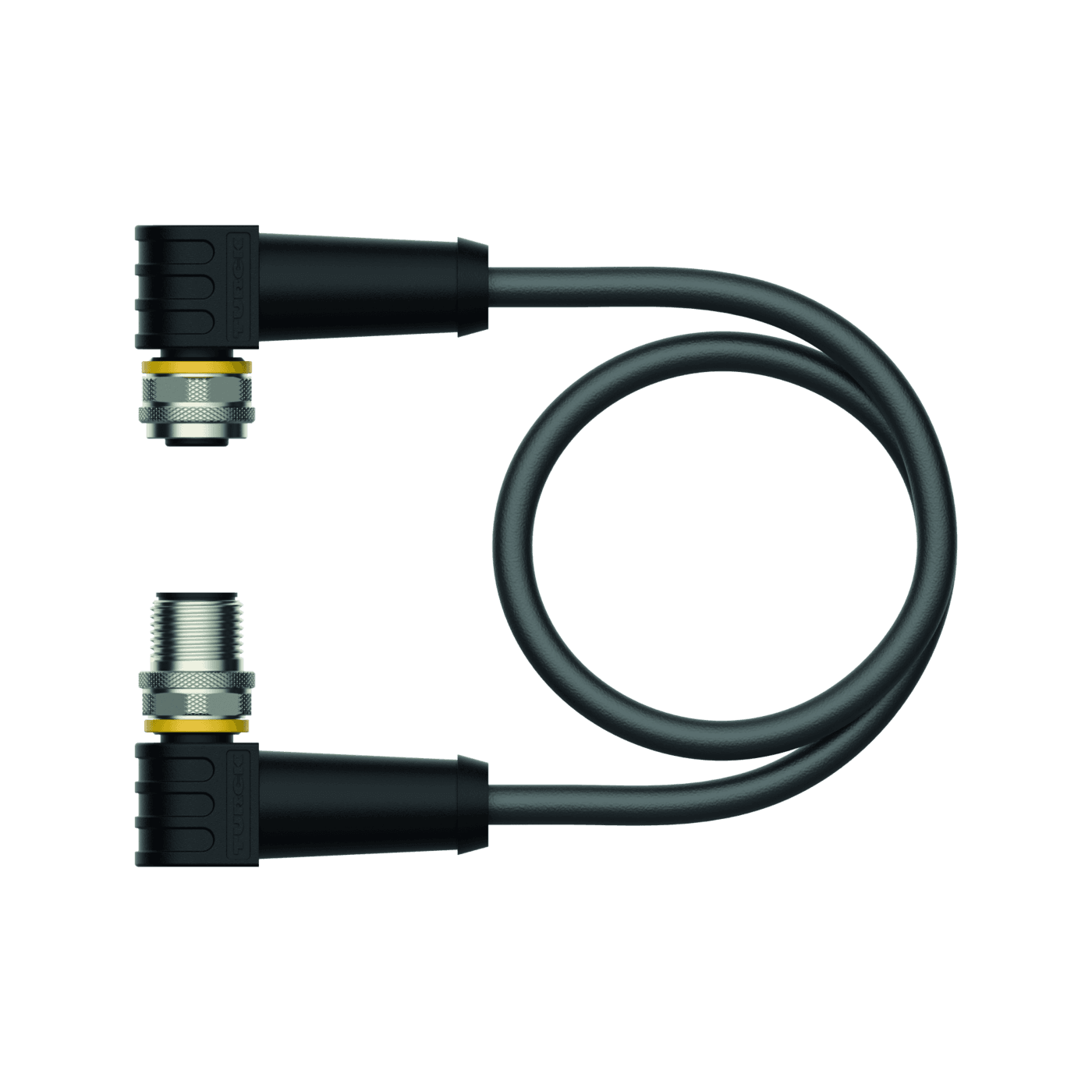

Actuator and Sensor Cable, PUR Extension Cable

WKS4.4T-1.5-WSS4.4T/TXL

Order ID no. 6626952

In Stock

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Application: Signal
Approvals: cULus
Base unit: PCE
Cable color: Black
Cable diameter (mm): 5.3
Cable length (m): 1.5
Cable quality: PUR
Connector A: Female, M12 x 1, Angled, A-coded
Connector B: Male, M12 x 1, Angled, A-coded
Core cross-section (mm²): 0.34
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Current (A): 4
Design: Extension Cable
Dimension unit: MMT
EAN/UPC code: 4047106160500
Gross weight: 107
Height: 20
Length: 170
Net weight: 107
Number of pins: 4
Number of Pins: 4
Plug body: Plastic
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Voltage (V): 250
Volume: 0.442
Volume unit: DMQ
Weight unit: GRM
Width: 130
