RSS4.5T-20/TEL | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

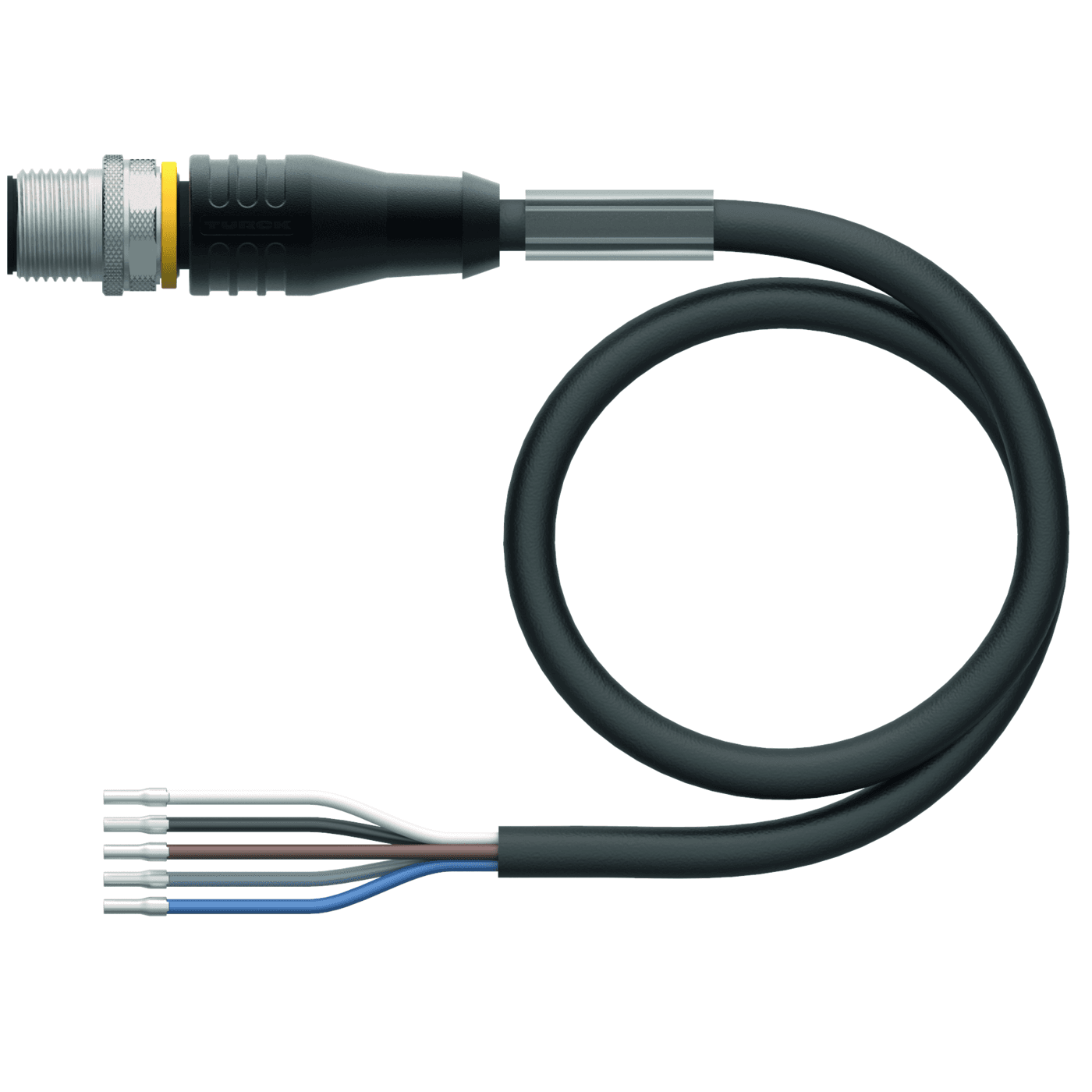

Actuator and Sensor Cable, PVC Connection Cable
RSS4.5T-20/TEL
Order ID no. 6626797
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
0
Application
Signal
Approvals
cULus
Base unit
PCE
Cable color
Black
Cable diameter (mm)
6.1
Cable length (m)
20
Cable quality
PVC
Connector A
Male, M12 x 1, Straight, A-coded
Core cross-section (mm²)
0.34
Coupling nut/screw material A
Brass
Current (A)
4
Design
Connection Cable
Dimension unit
MMT
EAN/UPC code
4047106159672
Gross weight
1234
Height
70
Length
230
Net weight
1234
Number of pins
5
Plug body
Plastic
Special features
Shielded, Shielding on coupling nut
Voltage (V)
60
Volume
3703
Volume unit
CMQ
Weight unit
GRM
Width
230
Key Features
Cable length (m)
20
Cable quality
PVC
home
Turck-Shop
Connectivity
Cordsets
RSS4.5T-20/TEL
In Stock
List Price
A$182.60
Item Total
A$182.60
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
