PKW4M-0.6-PSW4M/TXL | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

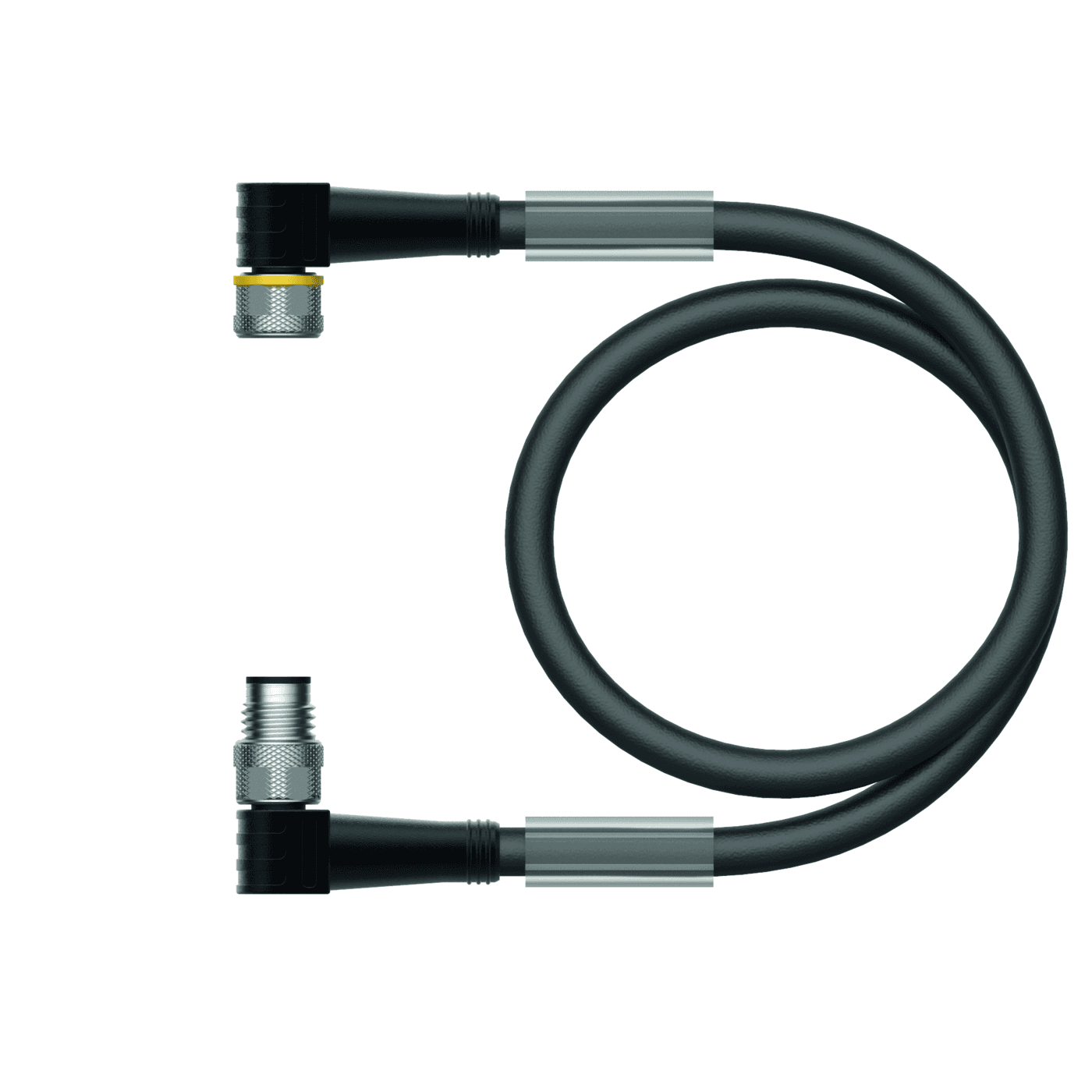

Actuator, Sensor and Supply Cable, PUR Extension Cable
PKW4M-0.6-PSW4M/TXL
Order ID no. 6625689
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-25
Application
Power, Signal
Approvals
cULus
Base unit
PCE
Cable color
Black
Cable diameter (mm)
4.5
Cable length (m)
0.6
Cable quality
PUR
Connector A
Female, M8 x 1, Angled
Connector B
Male, M8 x 1, Angled
Core cross-section (mm²)
0.34
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047101341379
Gross weight
30
Height
20
Length
120
Net weight
30
Number of pins
4
Number of Pins
4
Plug body
Plastic
Special features
Suitable for drag chain use
Volume
240
Volume unit
CMQ
Weight unit
GRM
Width
100
Key Features
Cable length (m)
0.6
Cable quality
PUR
home
Turck-Shop
Connectivity
Cordsets
PKW4M-0.6-PSW4M/TXL
In Stock
List Price
A$40.32
Item Total
A$40.32
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
