RSS8T-5/TEL | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

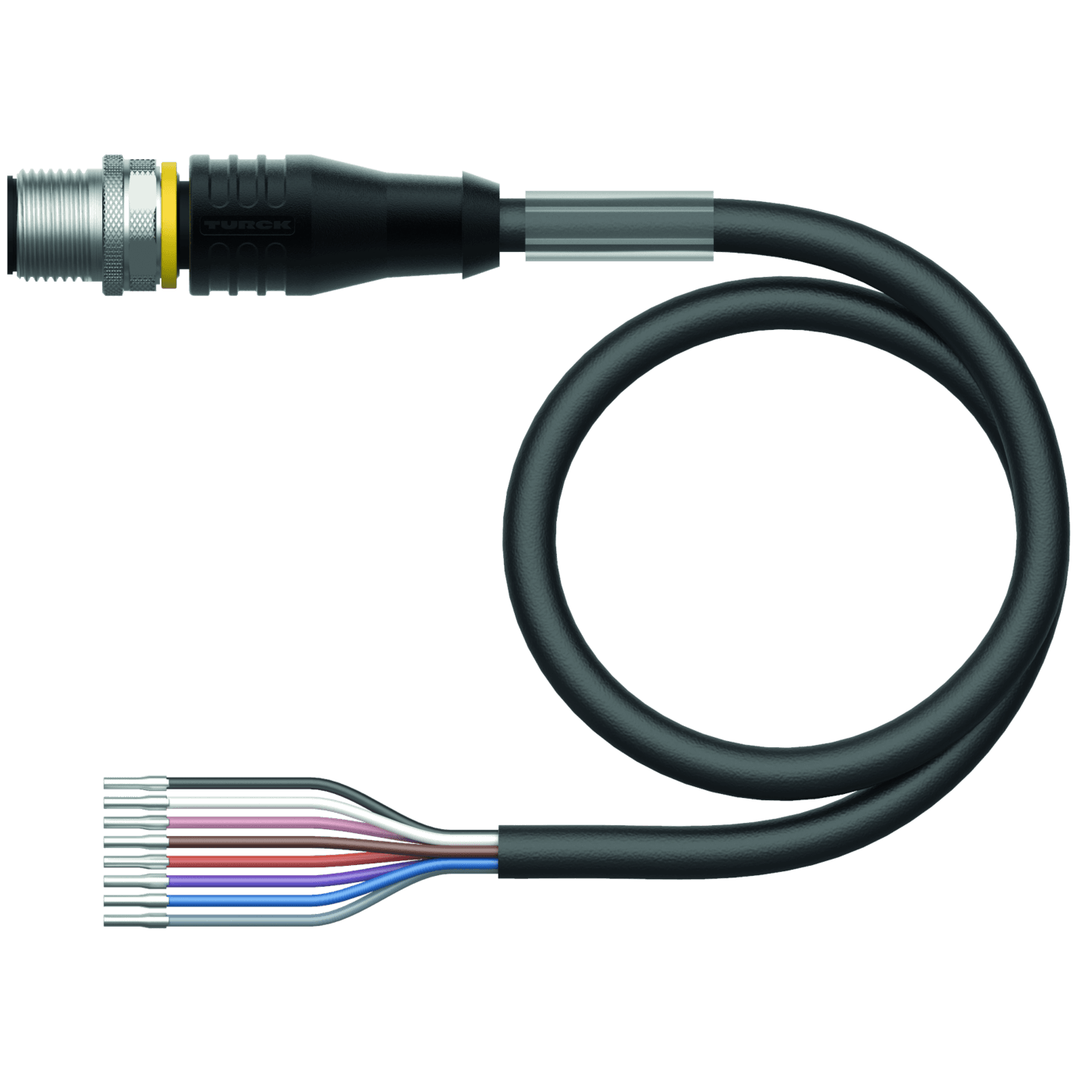

Actuator and Sensor Cable, PVC Connection Cable
RSS8T-5/TEL
Order ID no. 6625453
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
0
Application
Signal
Approvals
cULus
Base unit
PCE
Cable color
Black
Cable diameter (mm)
6.4
Cable length (m)
5
Cable quality
PVC

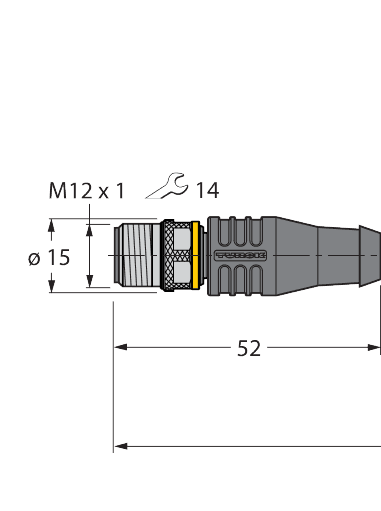

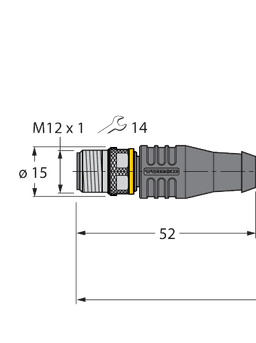

Connector A
Male, M12 x 1, Straight, A-coded
Core cross-section (mm²)
0.25
Coupling nut/screw material A
Brass
Current (A)
2
Design
Connection Cable
Dimension unit
MMT
EAN/UPC code
4047101333855
Gross weight
340
Height
2
Length
200
Net weight
340
Number of pins
8
Plug body
Plastic
Special features
Shielded, Shielding on coupling nut
Voltage (V)
30
Volume
46.4
Volume unit
CMQ
Weight unit
GRM
Width
116
home
Turck-Shop
Connectivity
Cordsets
RSS8T-5/TEL
Key Features
Cable length (m)
5
Cable quality
PVC
In Stock
List Price
A$84.34
Item Total
A$84.34
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
