PSGS4M-PKGS4M-4414-3M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

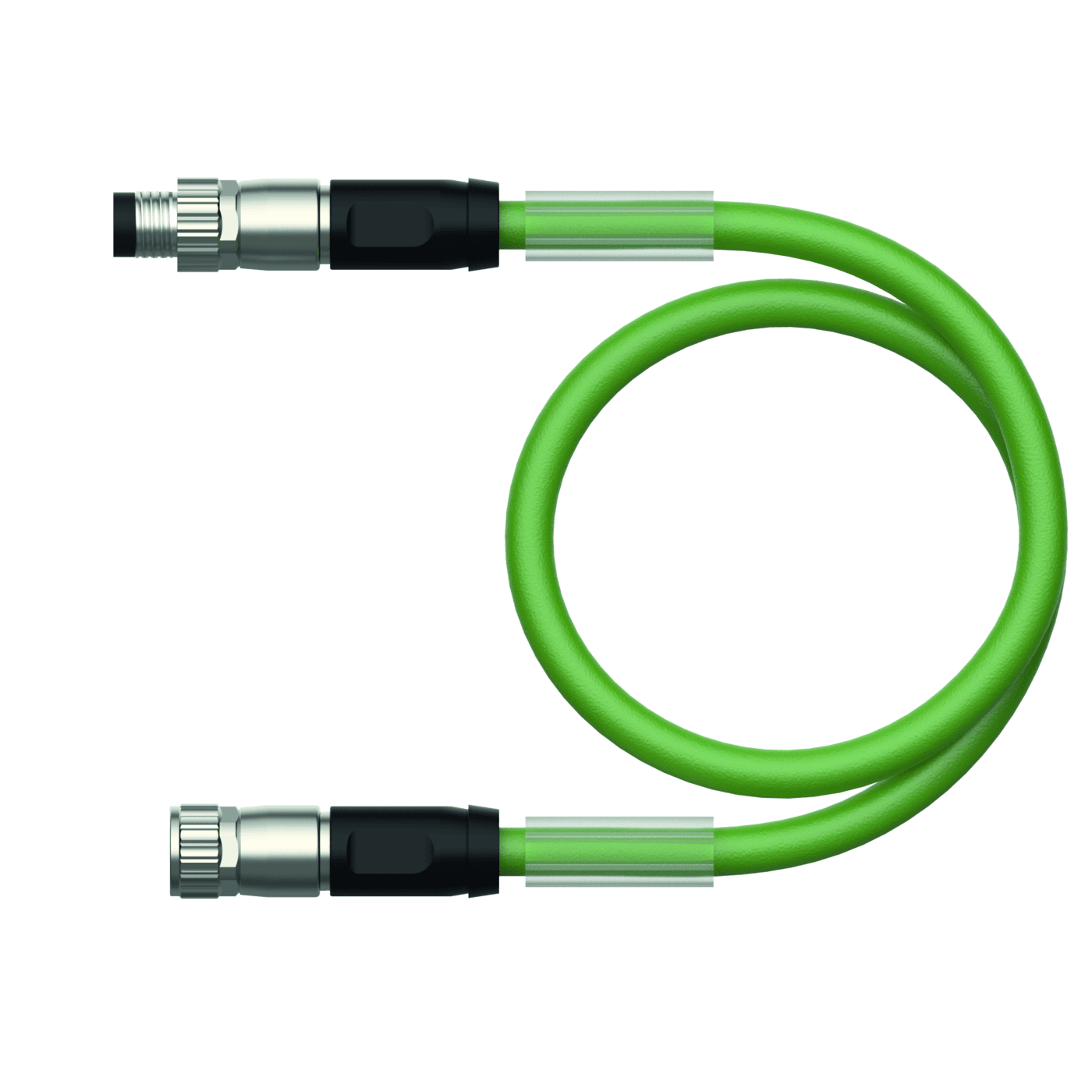

Industrial Ethernet Cable Connection Cable
PSGS4M-PKGS4M-4414-3M
Order ID no. 100036538
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-25
Application
Data
Approvals
cULus
Base unit
PCE
Cable color
Green
Cable diameter (mm)
4.8
Cable length (m)
3
Cable quality
PUR

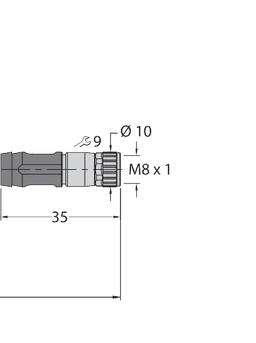

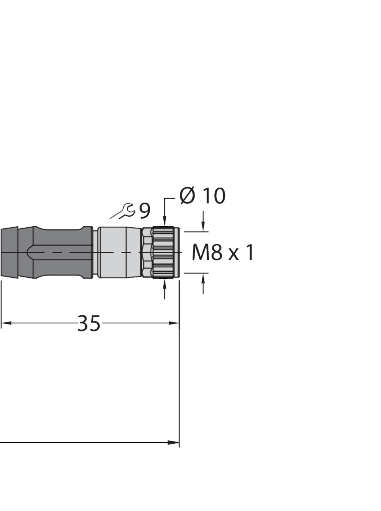

Connector A
Male, M8 x 1, Straight
Connector B
Female, M8 x 1, Straight
Core cross-section (mm²)
0.15
Coupling nut/screw material A
Zinc
Coupling nut/screw material B
Die-cast Zinc
Current (A)
3
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047101590579
Gross weight
1
Height
0
Length
0
Net weight
1
Network protocol
Ethernet
Number of pins
4
Number of Pins
4
Plug body
Plastic
Voltage (V)
42
Volume
0
Weight unit
GRM
Width
0
home
Turck-Shop
Connectivity
Cordsets
PSGS4M-PKGS4M-4414-3M
Key Features
Cable length (m)
3
Cable quality
PUR
In Stock
List Price
A$116.50
Item Total
A$116.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
