Inductive Angle Sensor
RI360P1-DSU35TC-ELI-EXI
Order ID no. 1593015| In Stock | |
| Price Group | G1 |
| List Price | A$764.72 |
Item TotalA$764.72
Quantity
- Output function
- Analog output
- Electrical connection
- Terminal chamber
- Housing material
- Plastic
- Housing quality
- PP-GF30
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Protection class
- IP68, IP69K
- Design
- Dual sensor for rotary actuators
- Measuring principle
- Inductive
- Mounting conditions
- Non-flush
- Operating voltage
- DC
- Construction size

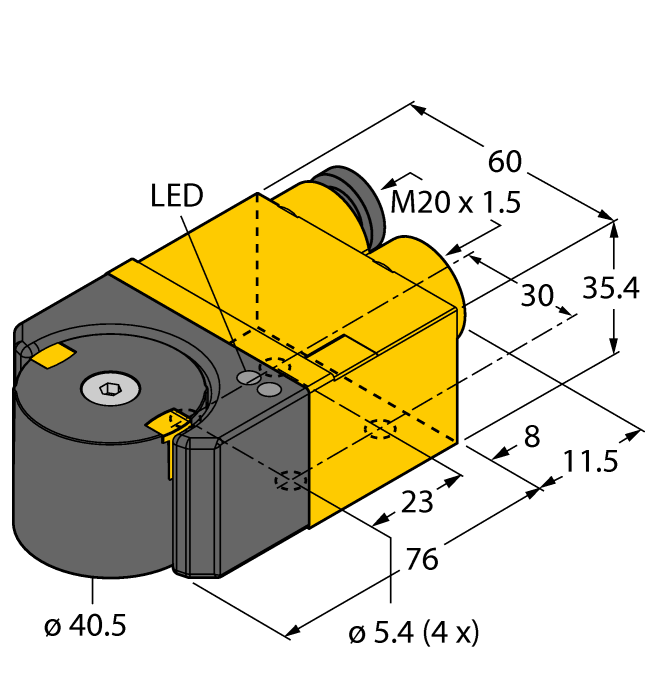

- 76 x 60 x 35.4 mm
- Measuring range
- 0…360°
- Output type
- Absolute singleturn
- Flange type
- Flange without mounting element
Key Features
- Electrical connection
- Terminal chamber
- Measuring range
- 0…360°
- Mounting conditions
- Non-flush
- Output function
- Analog output
