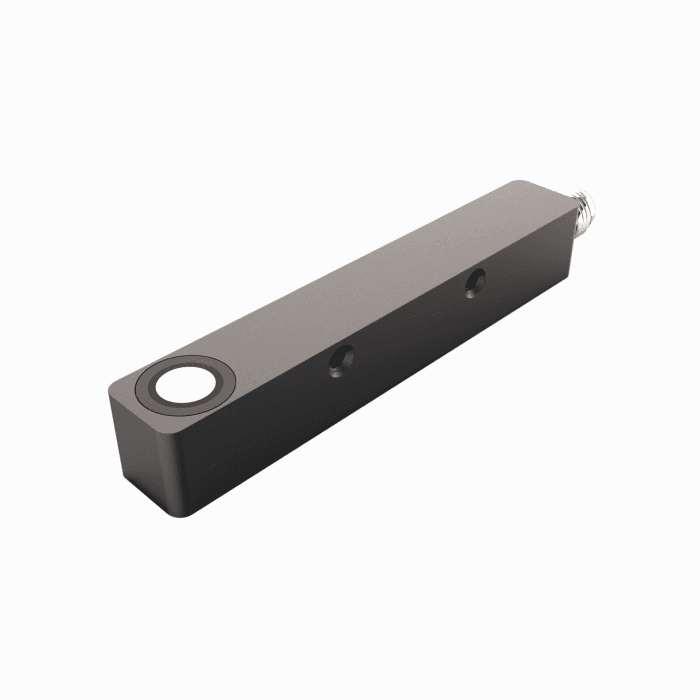

Ultrasonic Sensor
RU40L-Q12S-UN8X-V1141
Order ID no. 100005613| In Stock | |
| List Price | A$597.23 |
Item TotalA$597.23
Quantity
- Function
- Retroreflective Sensor
- Switching element function
- NO/NC
- Output function
- NPN
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M8 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Protection class
- IP67
- Design
- Rectangular
- Measuring principle
- Ultrasonic
- Max. range (mm)
- 400
- Detection type
- contactless
- Medium
- liquids, Bulk goods
- Construction size
- 82 x 12 x 12 mm
Key Features
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Output function
- NPN
- Max. range (mm)
- 400
