Temperature Detection

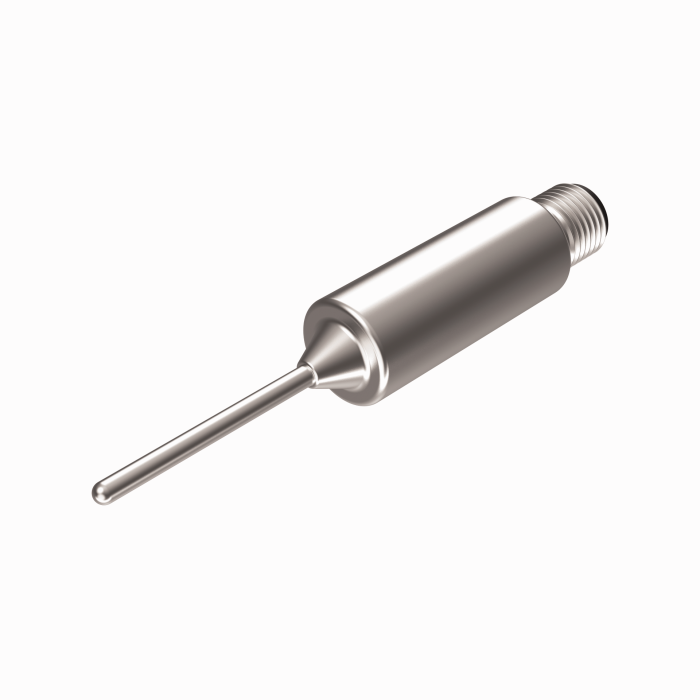

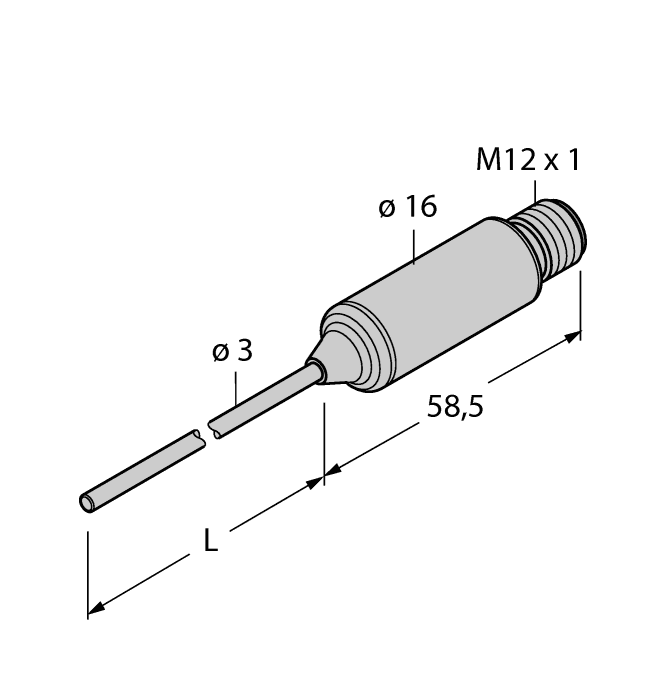

TTMS-203A-CF-LIUPN-H1140-L100
Order ID no. 9910656
In Stock
List Price
A$447.68
home
Turck-Shop
Sensors
Temperature Sensors
TTMS-203A-CF-LIUPN-H1140-L100
Technical Data
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Approvals
cULus
Design
Without display (integrated probe)
Process connection
For compression fittings, thermowell or direct mounting
Immersion depth L
100
Detection type
medium contact
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min.
-40
Ambient temperature max.
80
Mounting conditions
Immersion sensor
Operating voltage
DC
Measuring range
-70…500 °C
Electrical output
Current output (2-wire), Switching output
Key Features
Communication protocol
IO-Link
Electrical output
Current output (2-wire), Switching output
Process connection
For compression fittings, thermowell or direct mounting
Measuring range
-70…500 °C
Item Total
A$447.68
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
