TP-504A-TRI3/4-H1141-L100 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Temperature Detection

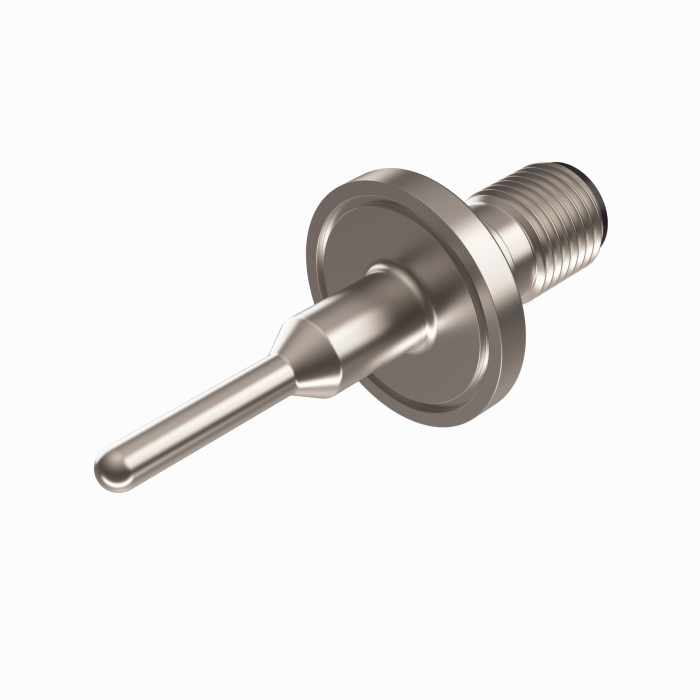

TP-504A-TRI3/4-H1141-L100
Order ID no. 9910430
home
Home
Loading...
Technical Data
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
120
Protection class
IP67
Design
Temperature probe
Detection type
medium contact
Immersion depth L (mm)
100
Process connection
Tri-Clamp 3/4″
Electrical output
Resistance
Measuring range
-50…120 °C
Approvals
cULus
Key Features
Electrical output
Resistance
Process connection
Tri-Clamp 3/4″
Measuring range
-50…120 °C
In Stock
Price Group
D2
List Price
A$209.44
home
Turck-Shop
Sensors
Temperature Sensors
TP-504A-TRI3/4-H1141-L100
Item Total
A$1,047.20
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
