Temperature Detection

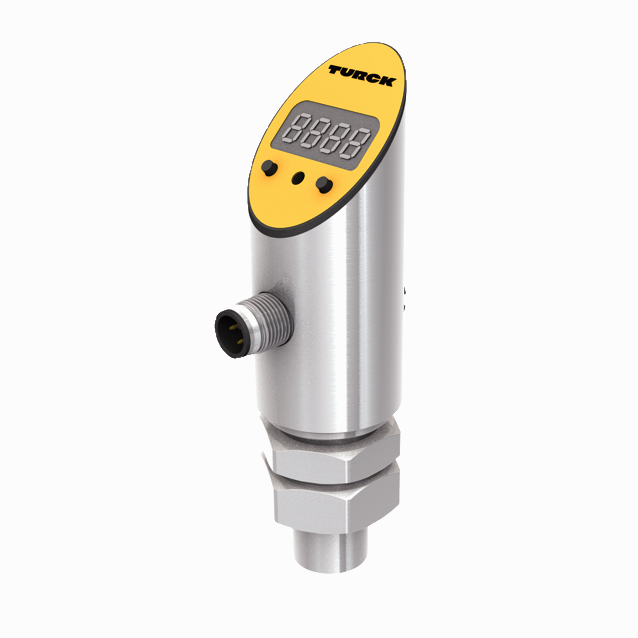

TS-500-LI2UPN8X-H1141
Order ID no. 6840015
In Stock
List Price
A$835.14
home
Turck-Shop
Sensors
Temperature Sensors
TS-500-LI2UPN8X-H1141
Technical Data
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Design
With display (external probe)
Process connection
Cylindrical, Ø 18 mm
Detection type
medium contact
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4305 (AISI 303)
Ambient temperature min.
-40
Ambient temperature max.
80
Operating voltage
DC
Measuring range
-50…500 °C
Electrical output
Current output (3-wire), Switching output
Key Features
Communication protocol
IO-Link
Electrical output
Current output (3-wire), Switching output
Process connection
Cylindrical, Ø 18 mm
Measuring range
-50…500 °C
