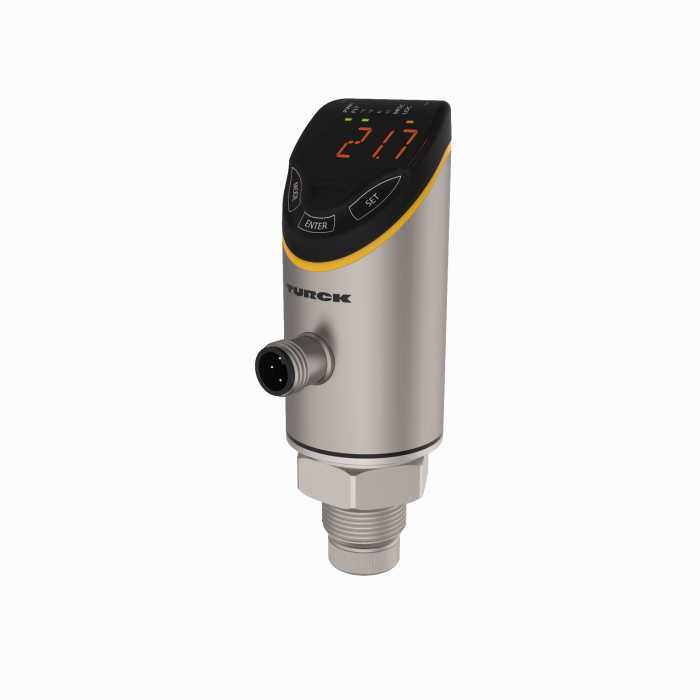

Temperature Detection

TS720-LI2UPN8-H1141

Order ID no. 100003640

Switching element function: NO/NC programmable
Output function: PNP/NPN
Communication protocol: IO-Link
Electrical connection: Connector

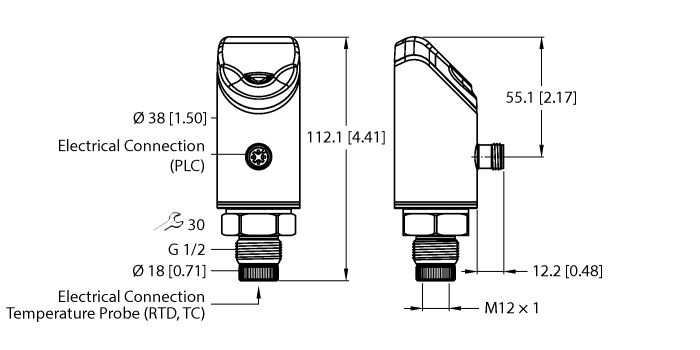

Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Protection class: IP66, IP67, IP69K
Design: With display (external probe)
Detection type: medium contact
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Operating voltage: DC
Approvals: cULus

Communication protocol: IO-Link
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
