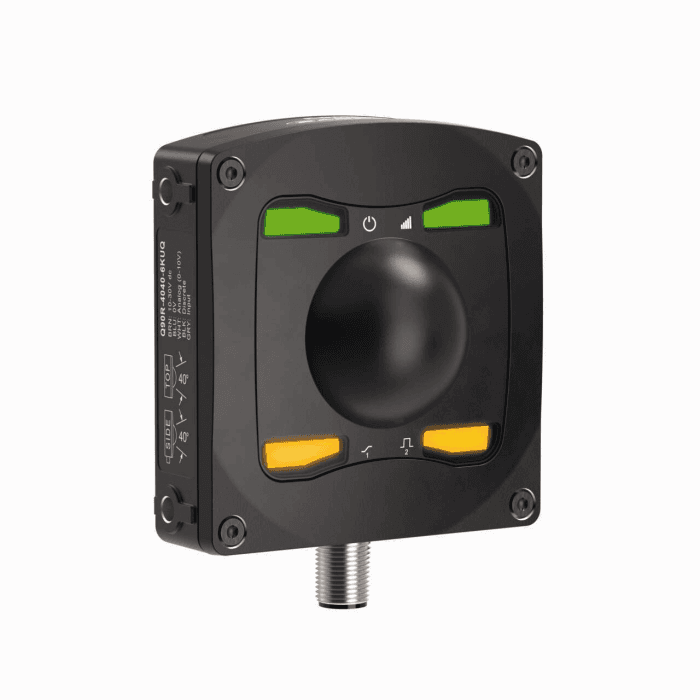

Radar Sensor
Q90R-4040-6KIQ
Order ID no. 3815694| In Stock | |
| List Price | A$1,530.35 |
Item TotalA$1,530.35
Quantity
- Protection class
- IP67
- Switching element function
- NO/NC programmable
- Output function
- Push-pull, PNP/NPN programmable
- Approvals
- CE, UKCA, UL Listed
- Design
- Rectangular
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Aluminium
- Housing quality
- AL
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 65
- Max. range (mm)
- 20000
- Operating voltage
- DC
- Antenna connection
- Internal, planar

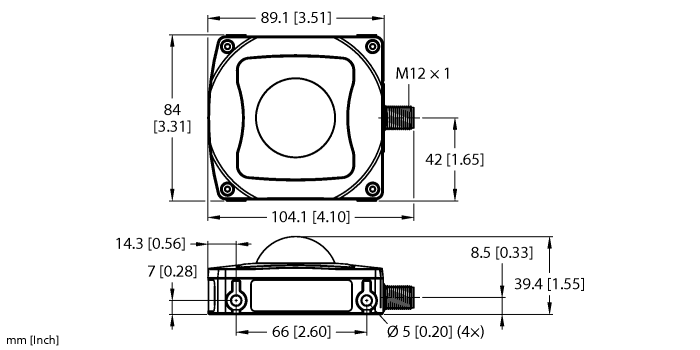

- Construction size
- 84 x 17 x 84 mm
Key Features
- Electrical connection
- Connector
- Output function
- Push-pull, PNP/NPN programmable
- Max. range (mm)
- 20000
