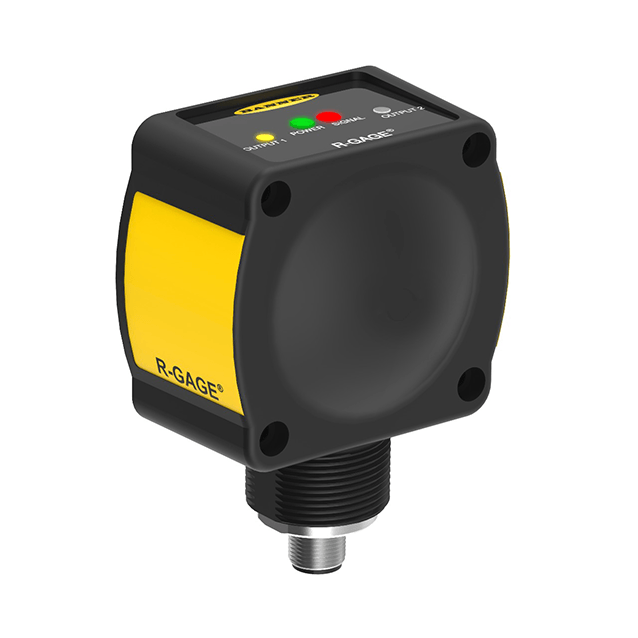

Radar Sensor
QT50R-EU-AFHQ
Order ID no. 3025370| In Stock | |
| Price Group | BE20 |
| List Price | A$2,244.12 |
Item TotalA$2,244.12
Quantity
- Function
- Proximity switch
- Switching element function
- NO/NC programmable
- Output function
- PNP/NPN
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- ABS/Polycarbonate
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 65
- Protection class
- IP67
- Design
- Rectangular
- Max. range (mm)
- 24000
- Operating voltage
- DC
- Antenna connection
- Internal, planar
- Construction size

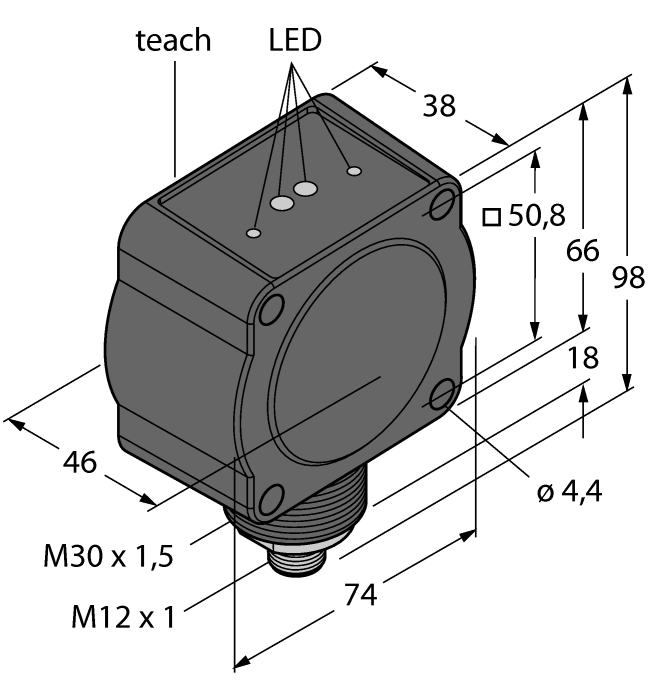

- 46.1 x 74.1 x 99.7 mm
- Beam angle
- 90° x 76°
Key Features
- Electrical connection
- Connector
- Output function
- PNP/NPN
- Beam angle
- 90° x 76°
- Max. range (mm)
- 24000
