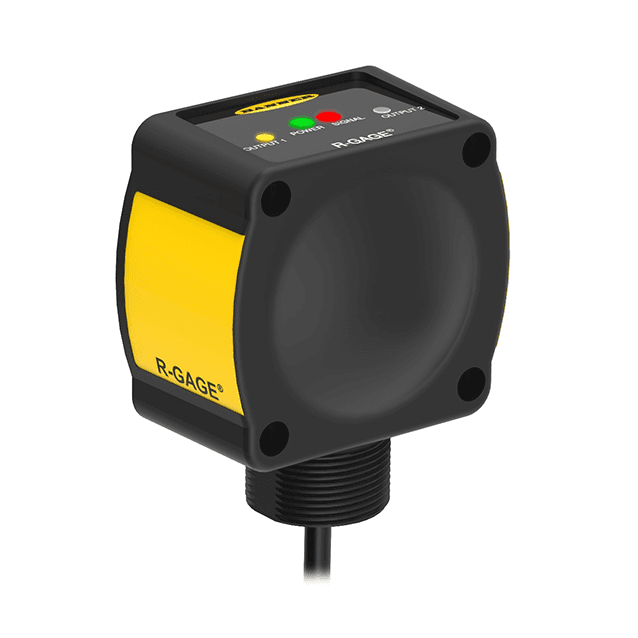

Radar Sensor
QT50R-EU-AFH
Order ID no. 3025366In Stock | |
List Price | A$2,340.34 |
Item TotalA$2,340.34
Quantity
- Protection class
- IP67
- Switching element function
- NO/NC programmable
- Output function
- PNP/NPN
- Cable length (m)
- 2
- Design
- Rectangular
- Electrical connection
- Cable
- Housing material
- Plastic
- Housing quality
- ABS/Polycarbonate
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 65
- Max. range (mm)
- 24000
- Beam angle
- 90° x 76°
- Function
- Proximity switch
- Operating voltage
- DC
- Antenna connection
- Internal, planar
- Construction size

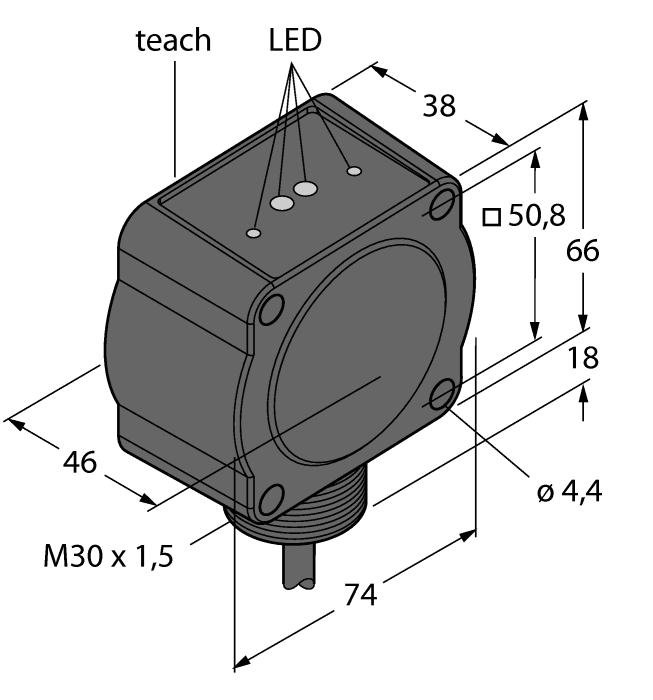

- 46.1 x 74.1 x 88.8 mm
Key Features
- Electrical connection
- Cable
- Output function
- PNP/NPN
- Beam angle
- 90° x 76°
- Max. range (mm)
- 24000
