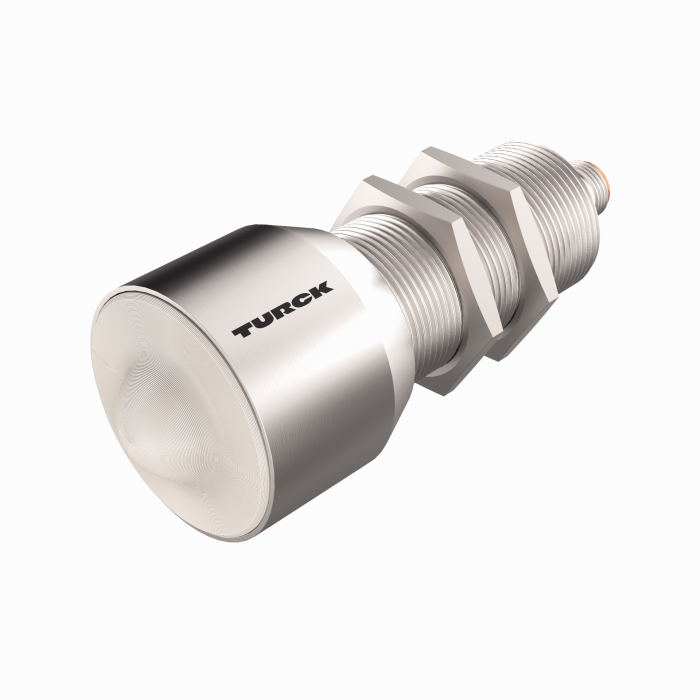

Radar Sensor
DR15S-M30E-IOL8X2-H1141
Order ID no. 100030148
In Stock
Price Group
G1
List Price
A$1,877.81
home
Turck-Shop
Sensors
Radar Sensors
DR15S-M30E-IOL8X2-H1141
Technical Data
Function
Radar scanner
Switching element function
NO/NC programmable
Output function
PNP/NPN, analog output
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4401 (AISI 316), PTFE
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
65
Protection class
IP67, IP69K
Design
Threaded barrel
Measuring principle
Radar
Max. range (mm)
15000
Detection type
contactless
Operating voltage
DC
Construction size
M30 x 1.5
Beam angle
15°
Key Features
Electrical connection
Connector
Output function
PNP/NPN, analog output
Beam angle
15°
Max. range (mm)
15000
