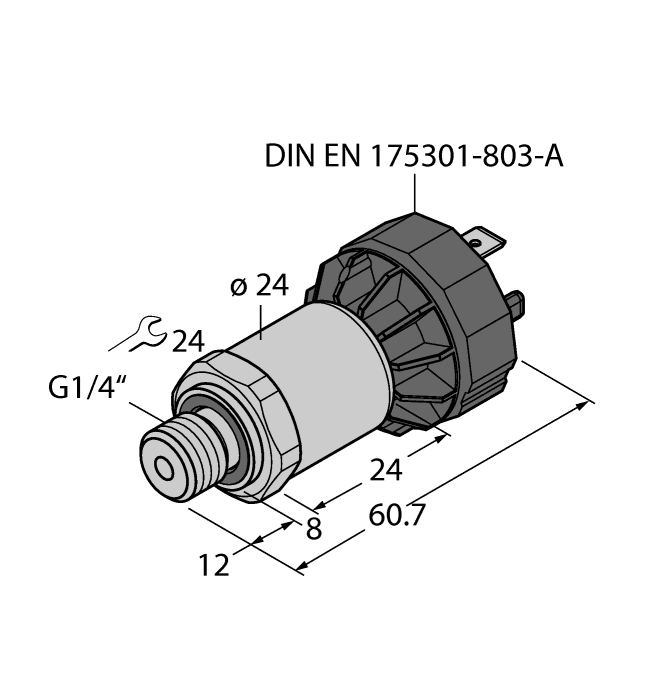

Pressure Transmitter

PT60R-1004-U1-DA91/X

Order ID no. 6837588

Output function: Analog output voltage
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Protection class: IP65
Design: Without display
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Voltage output (3-wire)
Min. media temperature (°C): -40
Max. media temperature (°C): 125
Operating voltage: DC
Pressure transducer material: Ceramic Al₂O₃
Pressure range: 0…60 bar
Pressure type: Relative pressure
Approvals: cULus

Electrical output: Voltage output (3-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…60 bar
