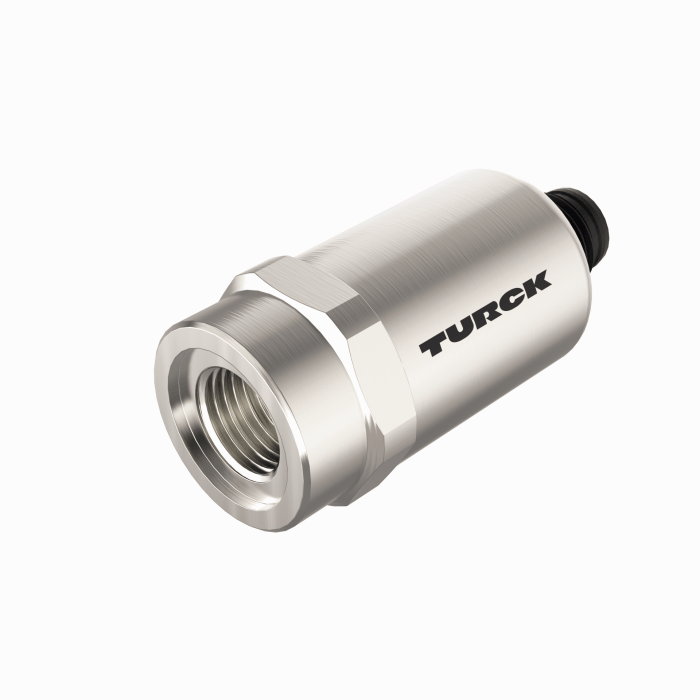

Pressure Transmitter
PT25R-2001-I2-H1143/X
Order ID no. 6836457| In Stock | |
| List Price | A$517.81 |
Item TotalA$517.81
Quantity
- Output function
- Analog output current
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Stainless-steel/Plastic
- Housing quality
- 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Ambient temperature min. (°C)
- -30
- Ambient temperature max. (°C)
- 85
- Protection class
- IP67
- Design
- Without display
- Process connection
- G 1/4” female thread (front sealing)
- Electrical output
- Current output (2-wire)
- Min. media temperature (°C)
- -40
- Max. media temperature (°C)
- 135
- Operating voltage
- DC
- Pressure transducer material
- Stainless steel 1.4016 (AISI 430)
- Pressure range
- 0…25 bar
- Pressure type
- Relative pressure
- Approvals
- cULus
Key Features
- Electrical output
- Current output (2-wire)
- Process connection
- G 1/4” female thread (front sealing)
- Pressure range
- 0…25 bar
