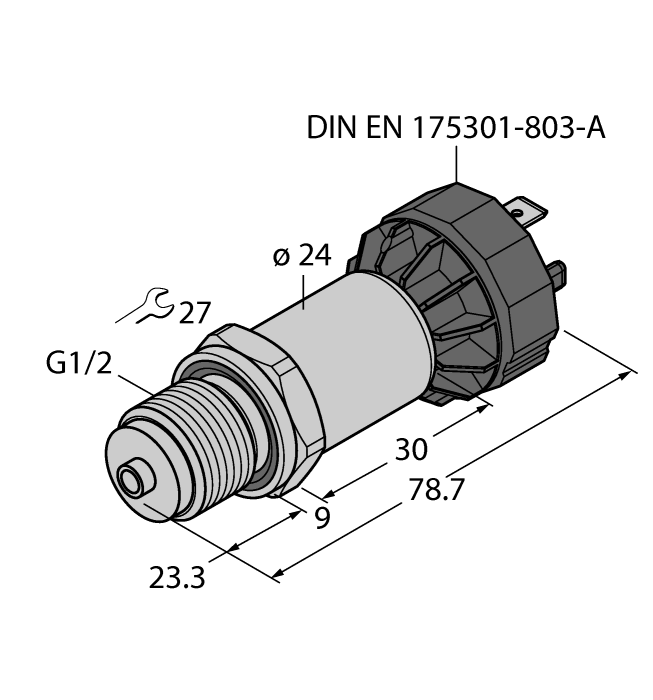

PT9V-2008-I2-DA91/X | TURCK - Your Global Automation Partner
Pressure Transmitter
PT9V-2008-I2-DA91/X
Order ID no. 6836095
home
Home
Loading...
Technical Data
Output function
Analog output current
Electrical connection
Connector
Connector type
DIN EN 175301-803 Form A
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Protection class
IP65
Design
Without display
Process connection
G 1/2” male thread, rear sealing and manometer (combi)
Electrical output
Current output (2-wire)
Min. media temperature (°C)
-40
Max. media temperature (°C)
135
Operating voltage
DC
Pressure transducer material
Stainless steel 1.4016 (AISI 430)
Pressure range
-1…9 bar
Pressure type
Relative pressure
Approvals
cULus
Key Features
Electrical output
Current output (2-wire)
Process connection
G 1/2” male thread, rear sealing and manometer (combi)
Pressure range
-1…9 bar
In Stock
Price Group
J1
List Price
A$517.81
