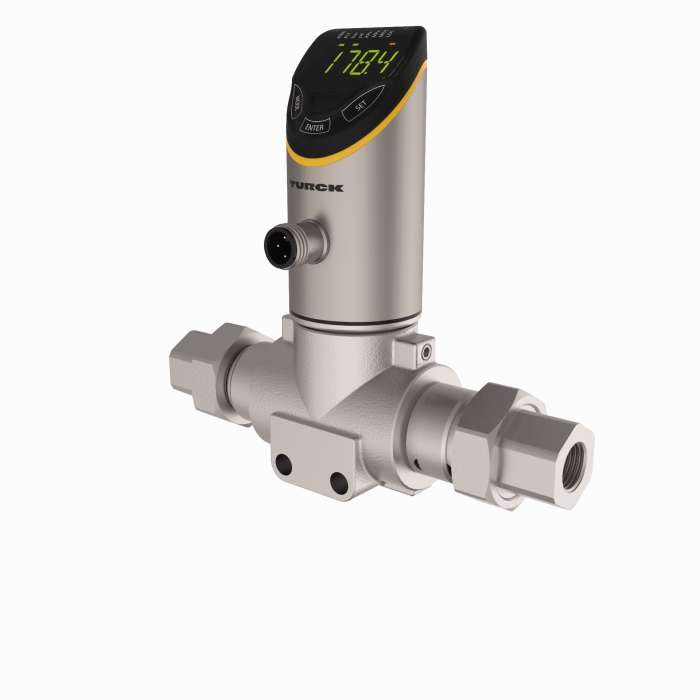

Pressure Sensor

PS325-250D-02-LI2UPN8-H1141

Order ID no. 100017522

In Stock
List Price	A$1,450.57

Protection class: IP66, IP67, IP69K
Switching element function: NO/NC
Output function: PNP/NPN
Approvals: cULus
Design: With display (integrated probe)
Process connection: 1/4″ NPT-18 female thread
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Media temperature min. (°C): -30
Media temperature max. (°C): 80
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Pressure type: Differential Pressure
Pressure range: 0…250 bar

Communication protocol: IO-Link
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Process connection: 1/4″ NPT-18 female thread
Pressure range: 0…250 bar
