Pressure Transmitter
PT600R-2119-I2-MP11
Order ID no. 100003602| In Stock | |
| List Price | A$547.79 |
Item TotalA$547.79
Quantity
- Protection class
- IP67
- Output function
- Analog output current
- Design
- Without display
- Process connection

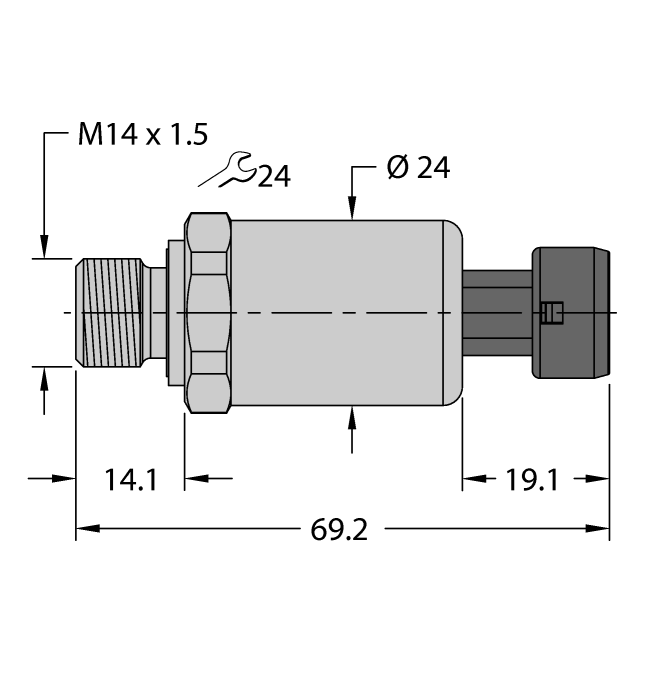

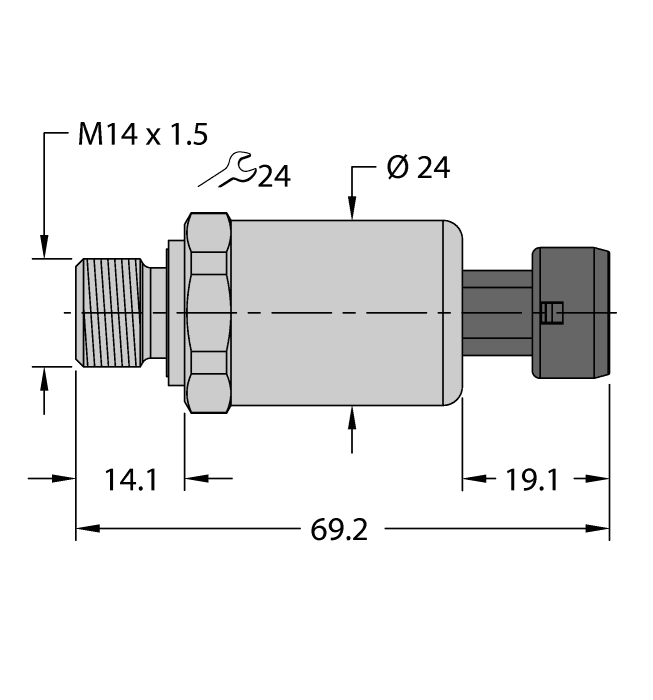

- M14 × 1.5 male thread
- Electrical connection
- Connector
- Connector type
- Metri Pack 150 P2S series
- Housing material
- Stainless-steel/Plastic
- Housing quality
- 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Media temperature min. (°C)
- -40
- Media temperature max. (°C)
- 125
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 100
- Operating voltage
- DC
- Electrical output
- Current output (2-wire)
- Pressure type
- Relative pressure
- Material pressure transducer
- Stainless steel 1.4404 (AISI 316L)
- Pressure range
- 0…600 bar
Key Features
- Electrical output
- Current output (2-wire)
- Process connection
- M14 × 1.5 male thread
- Pressure range
- 0…600 bar
