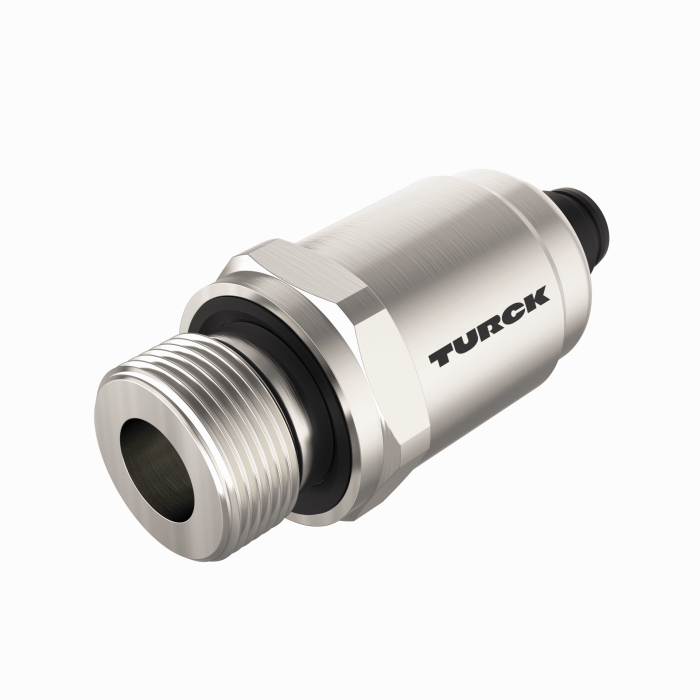

Pressure Transmitter

PT0.1R-1544-I2-H1143/D840

Order ID no. 100001382

In Stock
List Price	A$759.83

Protection class: IP67
Approvals: cULus
Design: Without display
Process connection: G 1/2” male thread DIN 3852-E (rear sealing) with 11-mm bore
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -15
Media temperature max. (°C): 85
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Pressure range: 0…0.1 bar

Electrical output: Current output (2-wire)
Process connection: G 1/2” male thread DIN 3852-E (rear sealing) with 11-mm bore
Pressure range: 0…0.1 bar
