LM80IRSDQP-X232 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric Sensor
LM80IRSDQP-X232
Order ID no. 3809720
home
Home
Loading...
Technical Data
Function
Proximity switch
Light type
Red
Switching element function
NO contact
Output function
Analog output
Communication protocol
RS232
Electrical connection
Cable with connector
Connector type
M12 × 1
Cable length (m)
0.3
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min. (°C)
-10
Ambient temperature max. (°C)
55
Protection class
IP67
Design
Rectangular
Optical resolution (mm)
0.002
Max. range (mm)
80

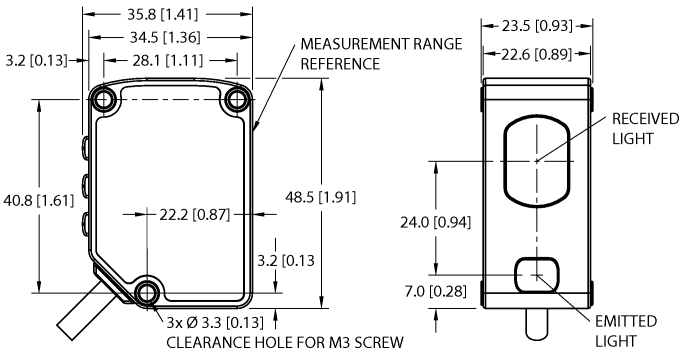

Construction size
35.8 x 23.5 x 48.5 mm
Approvals
CE, cULus
Key Features
Light type
Red
Output function
Analog output
Function
Proximity switch
Max. range (mm)
80
In Stock
Price Group
BE20
List Price
A$2,983.28
