SAB-497AB1DS6-Q5E | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

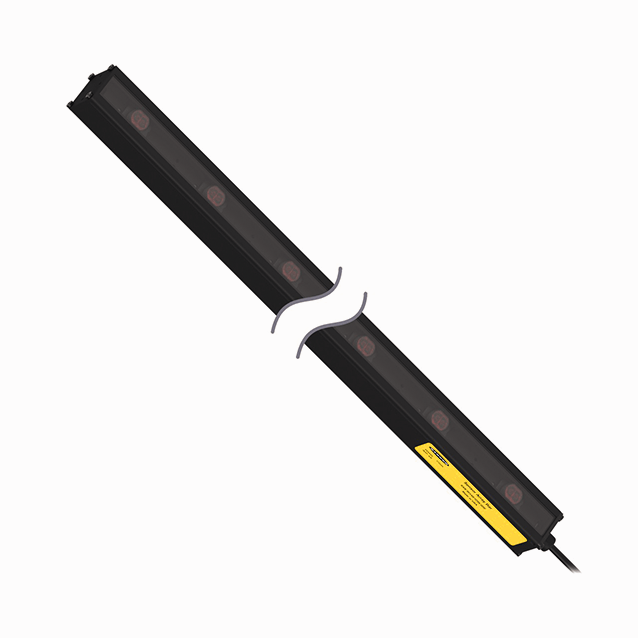

Photoelectric Sensor
SAB-497AB1DS6-Q5E
Order ID no. 3805075
home
Home
Loading...
Technical Data
Function
Proximity switch
Light type
IR
Switching element function
NO contact
Output function
PNP/NPN
Electrical connection
Cable with connector
Connector type
M12 × 1
Cable length (m)
0.15
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Protection class
IP50
Design
Rectangular
Scan field (mm)
497
Optical resolution (mm)
82.6
Number of beams
6
Cascadable
No
Max. range (mm)
200

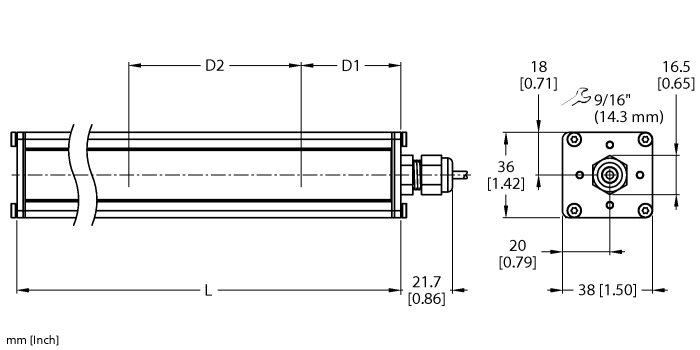

Construction size
38 x 36 x 497 mm
Key Features
Light type
IR
Output function
PNP/NPN
Function
Proximity switch
Max. range (mm)
200
In Stock
Price Group
BE10
List Price
A$1,456.12
