Photoelectric Sensor
R58ECRGB1Q
Order ID no. 3075040| In Stock | |
| List Price | A$898.01 |
Item TotalA$898.01
Quantity
- Protection class
- IP67
- Switching element function
- NO contact
- Output function
- PNP/NPN
- Cable length (m)
- 0.15
- Design
- Rectangular
- Electrical connection
- Cable with connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- Zinc Alloy Die-Cast
- Ambient temperature min. (°C)
- -10
- Ambient temperature max. (°C)
- 50
- Max. range (mm)
- 10
- Function
- Inspection sensor
- Focal distance (mm)
- 10
- Light type
- RGB

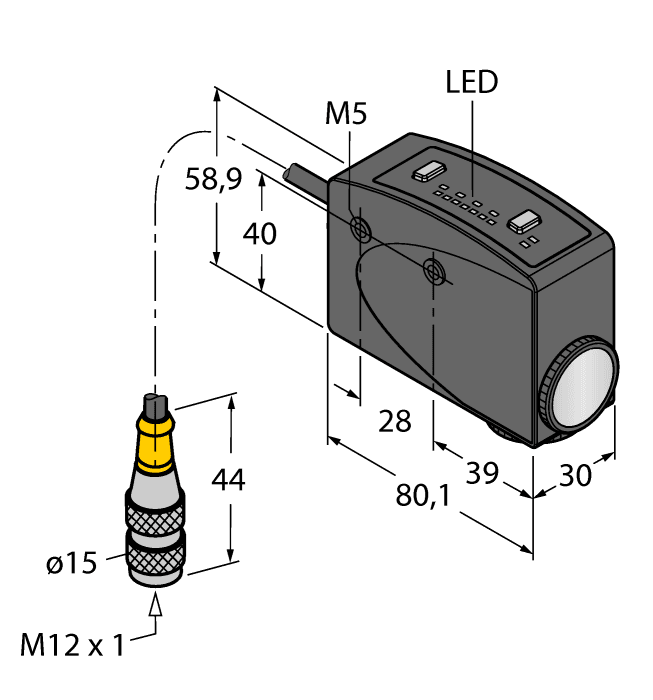

- Construction size
- 80.1 x 30 x 58.9 mm
Key Features
- Light type
- RGB
- Function
- Inspection sensor
- Output function
- PNP/NPN
- Max. range (mm)
- 10
