Magnetic Field Sensor

BIM-UNT-AP6X-0.3-PSG3S/S1139

Order ID no. 4685743

Switching element function: NO contact
Output function: PNP
Electrical connection: Cable with connector
Connector type: Ø 8 mm
Cable length (m): 0.3
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Protection class: IP68
Design: Rectangular
Operating voltage: DC
Cable color: Gray

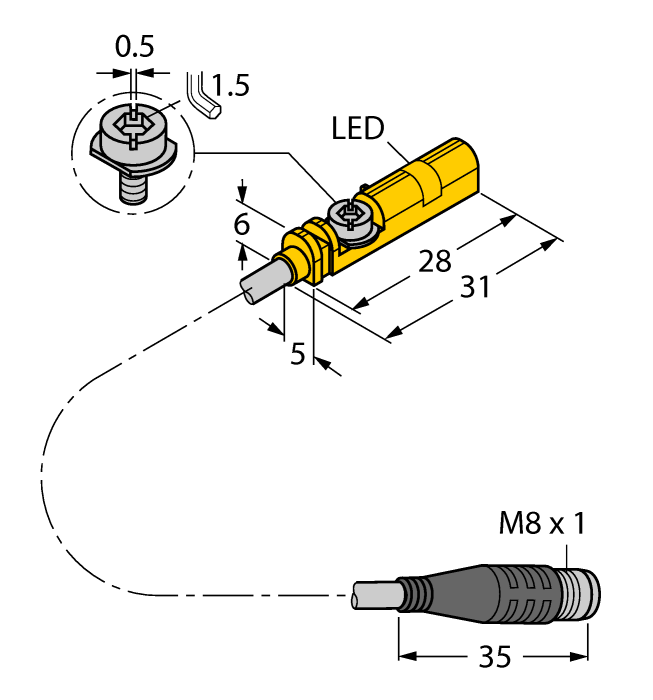

Construction size: 28 x 5 x 6 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
