Magnetic Field Sensor

BIM-UNT-AP6X2-V1131

Order ID no. 4685727

Switching element function: NO contact
Output function: PNP
Electrical connection: Connector
Connector type: M8 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Protection class: IP68
Design: Rectangular
Operating voltage: DC

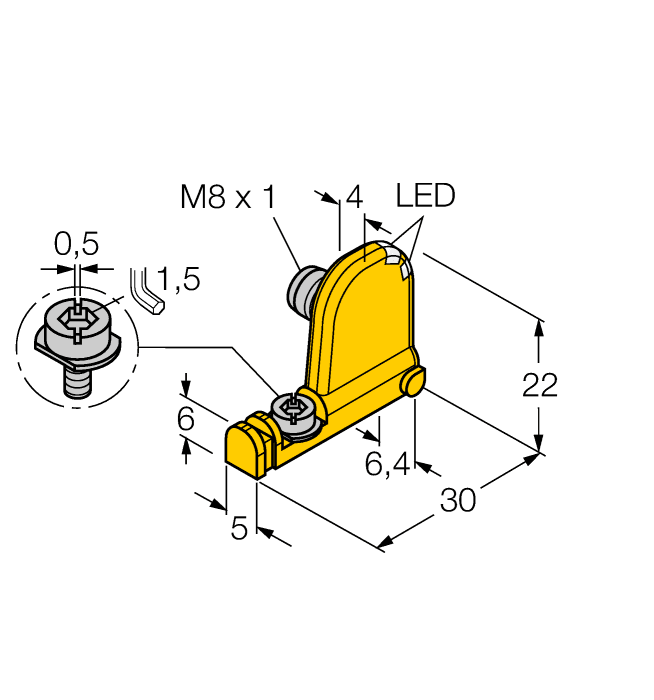

Construction size: 30 x 5 x 22 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
