Magnetic Field Sensor

BIM-IKT-AP6X-V1131

Order ID no. 46220

In Stock
List Price	A$184.44

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Design: Rectangular
Electrical connection: Connector
Connector type: M8 × 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min.: -25
Ambient temperature max.: 70
Operating voltage: DC

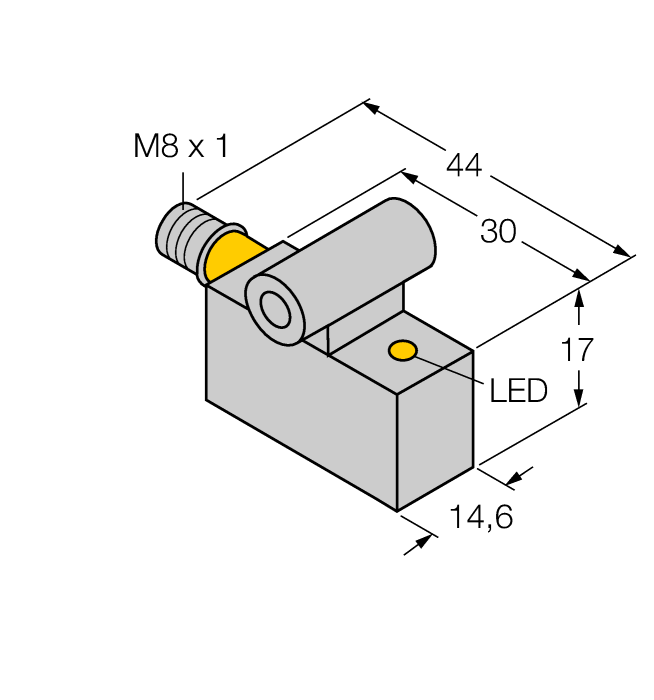

Construction size: 30 x 14.6 x 17 mm
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: PNP
