LTE500M-HT10-LU10-P-0.25-H1151

LTE500M-HT10-LU10-P-0.25-H1151

Thumbnail for LTE500M-HT10-LU10-P-0.25-H1151

Thumbnail for LTE500M-HT10-LU10-P-0.25-H1151

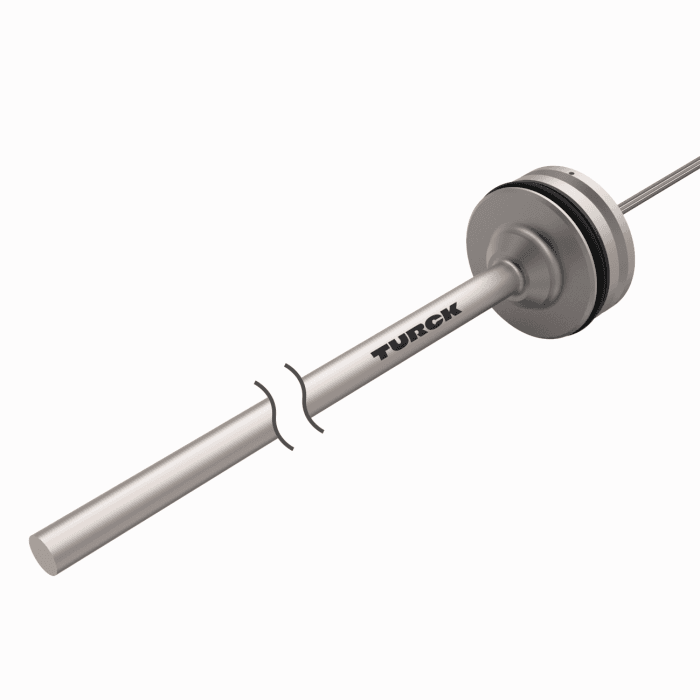

Pressure-Resistant Linear Position Sensor

LTE500M-HT10-LU10-P-0.25-H1151

Order ID no. 100002123

homeHome
Loading...

Protection class: IP68
Output function: Analog output
Design: Rod
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Stainless steel
Housing quality: 1.4305 (AISI 303)
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 85
Measuring principle: Magnetostrictive
Operating voltage: DC
Measuring range (mm): 500
Measuring range: 500…0.0 mm

Key Features

Electrical connection: Cable with connector
Measuring range (mm): 500
Output function: Analog output

homeTurck-Shop
Sensors
Linear Position Sensors
LTE500M-HT10-LU10-P-0.25-H1151

In Stock
List Price	A$2,051.32

Item TotalA$2,051.32

Quantity

Contact Support
