LS-551-0500-LIU24PN8X-H1181 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Level Sensor

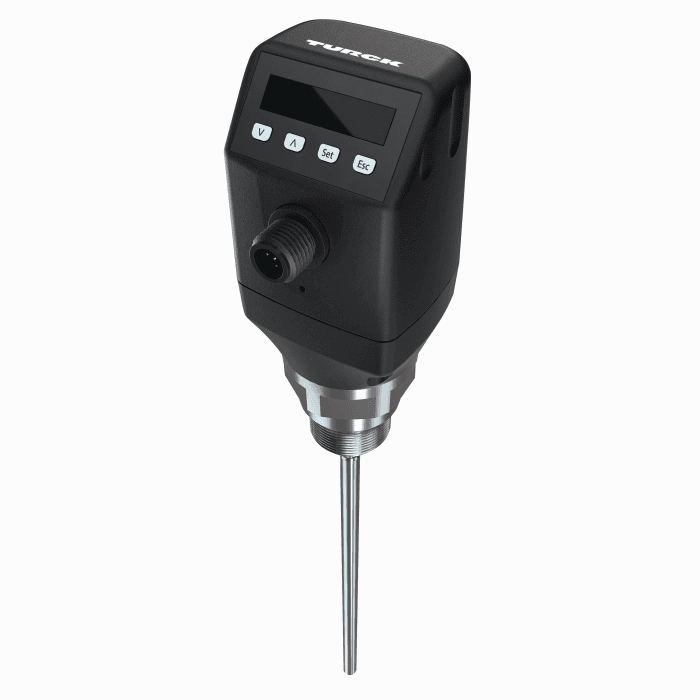

LS-551-0500-LIU24PN8X-H1181
Order ID no. 100001862
home
Home
Loading...
Technical Data
Switching element function
NO/NC
Output function
PNP/NPN, analog output
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
60
Protection class
IP67
Design
With display
Measuring principle
Guided microwave
Detection type
medium contact
Process connection
G 3/4'' male thread
Medium
liquids
Min. media temperature (°C)
-20
Max. media temperature (°C)
100
Operating voltage
DC
Approvals
UL
Measuring range (mm)
500 mm
Key Features
Communication protocol
IO-Link
Measuring range (mm)
500 mm
Process connection
G 3/4'' male thread
Output function
PNP/NPN, analog output
In Stock
Price Group
D2
List Price
A$1,709.45
