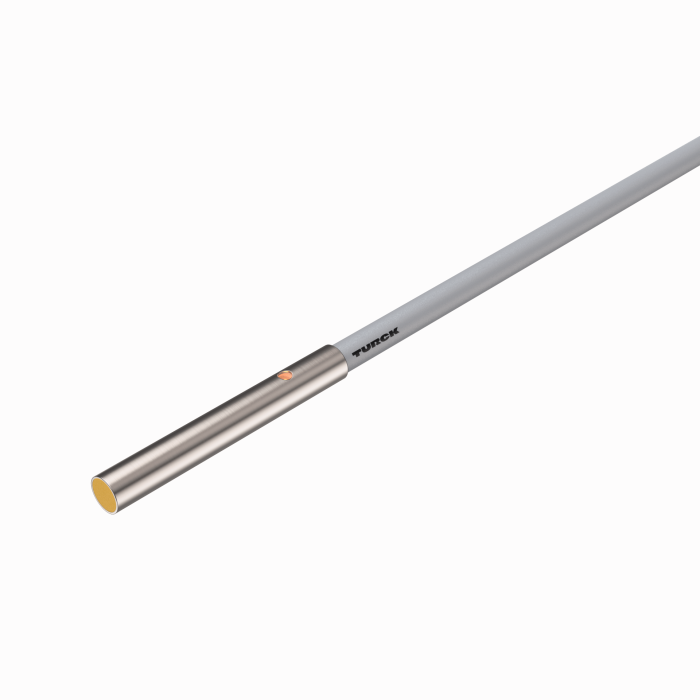

Inductive Sensor
BI1-EH04-AP6X
Order ID no. 4609540In Stock | |
List Price | A$332.17 |
Item TotalA$332.17
Quantity
- Protection class
- IP67
- Switching element function
- NO contact
- Output function
- PNP
- Cable length (m)
- 2
- Cable color
- Gray
- Design
- Smooth barrel
- Electrical connection
- Cable
- Housing material
- Stainless steel
- Housing quality
- 1.4305 (AISI 303)
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Mounting conditions
- Flush
- Operating voltage
- DC
- Rated switching distance (mm)
- 1

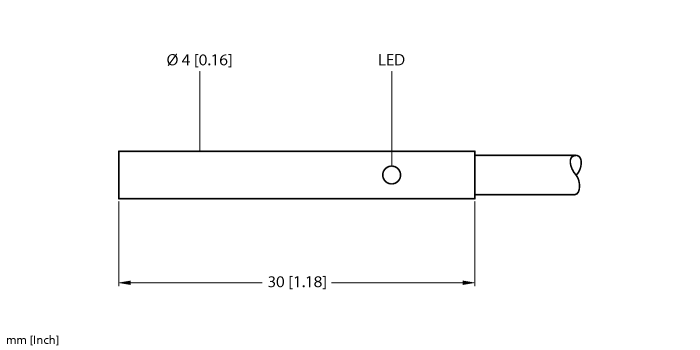

- Construction size
- Ø 4 mm
Key Features
- Electrical connection
- Cable
- Mounting conditions
- Flush
- Output function
- PNP
- Rated switching distance (mm)
- 1
