Inductive Sensor
BI10-S30-AZ3X
Order ID no. 43554| In Stock | |
| List Price | A$507.20 |
Item TotalA$507.20
Quantity
- Protection class
- IP67
- Switching element function
- NO contact
- Output function
- 2-wire
- Cable length (m)
- 2
- Design
- Threaded barrel
- Electrical connection
- Cable
- Housing material
- Plastic
- Housing quality
- PA12-GF30
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Mounting conditions
- Flush
- Operating voltage
- AC
- Rated switching distance (mm)
- 10
- Construction size

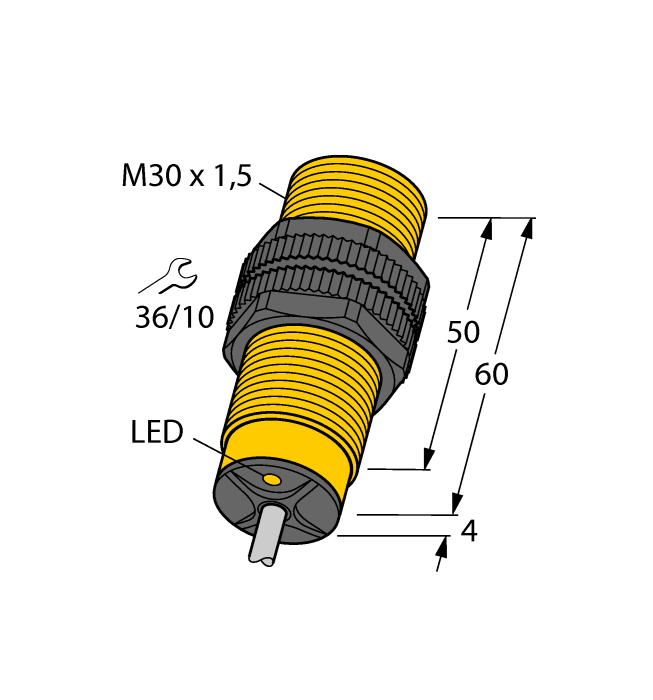

- M30 x 1.5
Key Features
- Electrical connection
- Cable
- Mounting conditions
- Flush
- Output function
- 2-wire
- Rated switching distance (mm)
- 10
