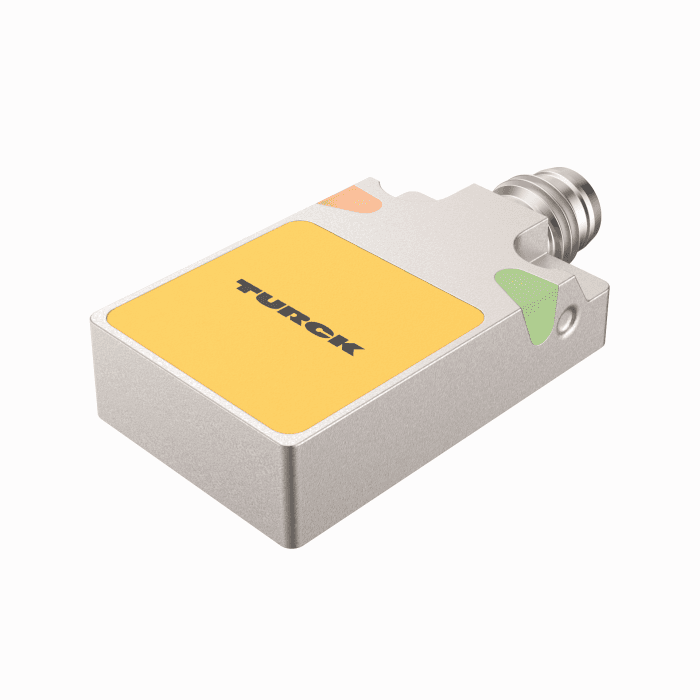

Inductive Sensor
BI5U-Q08-AP6X2-V1131
Order ID no. 1608900| In Stock | |
| List Price | A$265.26 |
Item TotalA$265.26
Quantity
- Protection class
- IP68
- Switching element function
- NO contact
- Output function
- PNP
- Design
- Rectangular
- Electrical connection
- Connector
- Connector type
- M8 × 1/Ø 8 mm
- Housing material
- Metal
- Housing quality
- Zamak
- Ambient temperature min. (°C)
- -30
- Ambient temperature max. (°C)
- 85
- Mounting conditions
- Flush
- Operating voltage
- DC
- Rated switching distance (mm)
- 5

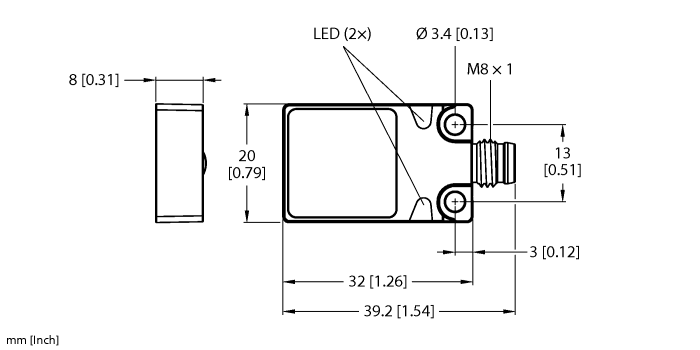

- Construction size
- 32 x 20 x 8 mm
Key Features
- Electrical connection
- Connector
- Mounting conditions
- Flush
- Output function
- PNP
- Rated switching distance (mm)
- 5
