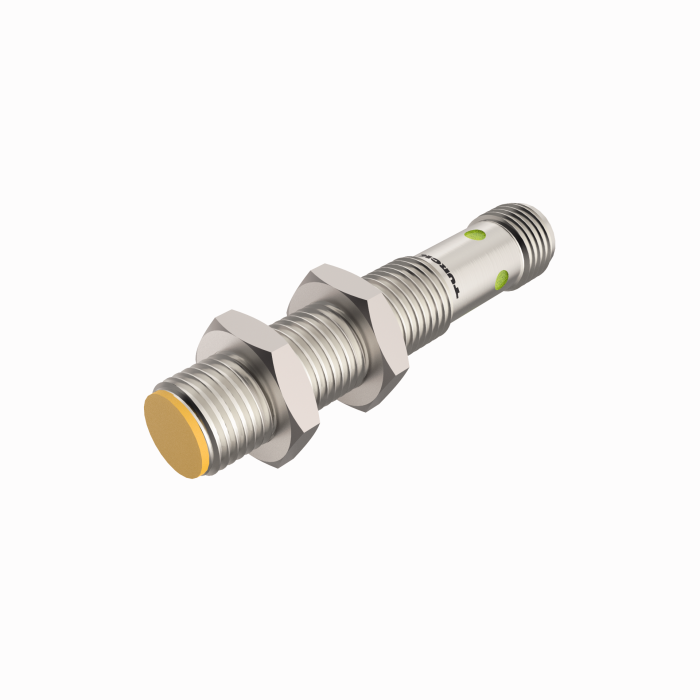

Inductive Safety Sensor
BI4-M12-2APS8X2-H1141
Order ID no. 100016606
In Stock
Price Group
E1
List Price
A$404.51
home
Turck-Shop
Sensors
Inductive Sensors
BI4-M12-2APS8X2-H1141
Technical Data
Function
Inductive safety switch
Switching element function
2 x OSSD, NO contact
Output function
PNP
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Protection class
IP67
Design
Threaded barrel
Mounting conditions
Flush
Cascadable
No
Coding level/tamper protection
Uncoded
Operating voltage
DC
Construction size
M12 x 1
Rated switching distance (mm)
4
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
4
