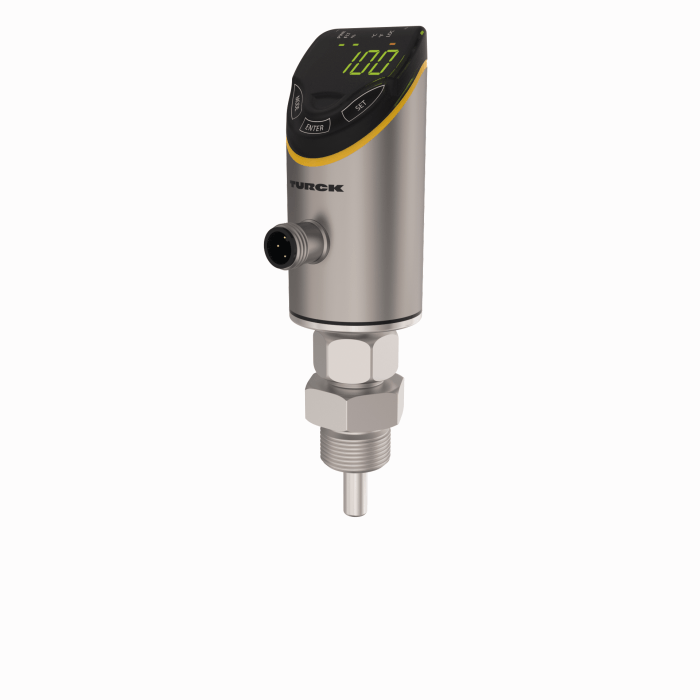

Flow Sensor
FS101-300L-04-2UPN8-H1141
Order ID no. 100030866
home
Home
Loading...
Technical Data
Switching element function
NO/NC programmable
Output function
PNP/NPN
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/Grilamid TR90 UV
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Protection class
IP66, IP67, IP69K
Design
With display (integrated probe)
Mounting conditions
Immersion sensor
Immersion depth L (mm)
16.9
Process connection
G 1/4'' male thread
Electrical output
2 × switching output, IO-Link
Medium
liquids
Min. media temperature (°C)
-25
Max. media temperature (°C)
85
Approvals
CE, cULus
Key Features
Communication protocol
IO-Link
Immersion depth L (mm)
16.9
Process connection
G 1/4'' male thread
Output function
PNP/NPN
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FS101-300L-04-2UPN8-H1141
In Stock
Price Group
D2
List Price
A$796.72
Item Total
A$796.72
Quantity
−
+
