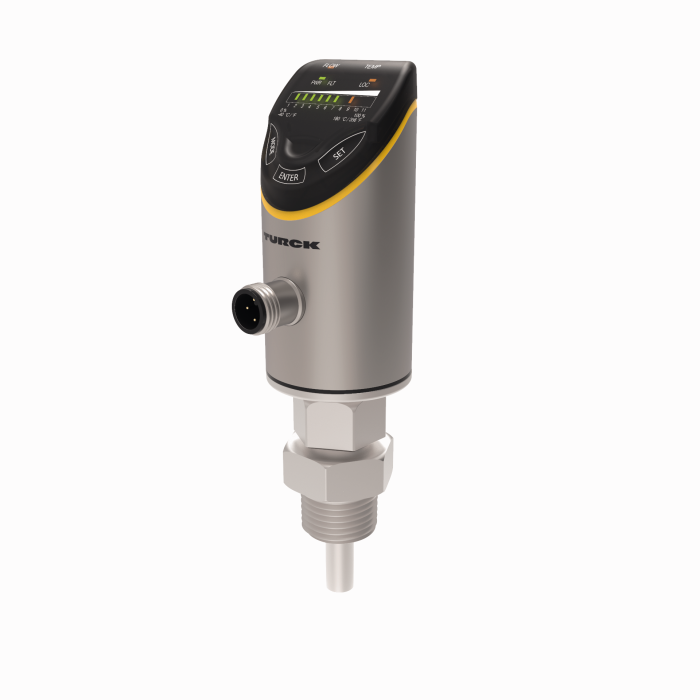

Flow Sensor
FS100-300L-63-2UPN8-H1141
Order ID no. 100001012| In Stock | |
| Price Group | D2 |
| List Price | A$796.72 |
Item TotalA$796.72
Quantity
- Switching element function
- NO/NC programmable
- Output function
- PNP/NPN
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Stainless-steel/Plastic
- Housing quality
- 1.4404 (AISI 316L)/Grilamid TR90 UV
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 80
- Protection class
- IP66, IP67, IP69K
- Design
- With display (integrated probe)
- Mounting conditions
- Immersion sensor
- Immersion depth L (mm)
- 41.9
- Process connection
- 1/2″ NPT male thread
- Electrical output
- 2 × switching output, IO-Link
- Medium
- liquids
- Min. media temperature (°C)
- -25
- Max. media temperature (°C)
- 85
- Approvals
- CE, cULus
Key Features
- Communication protocol
- IO-Link
- Immersion depth L (mm)
- 41.9
- Process connection
- 1/2″ NPT male thread
- Output function
- PNP/NPN
