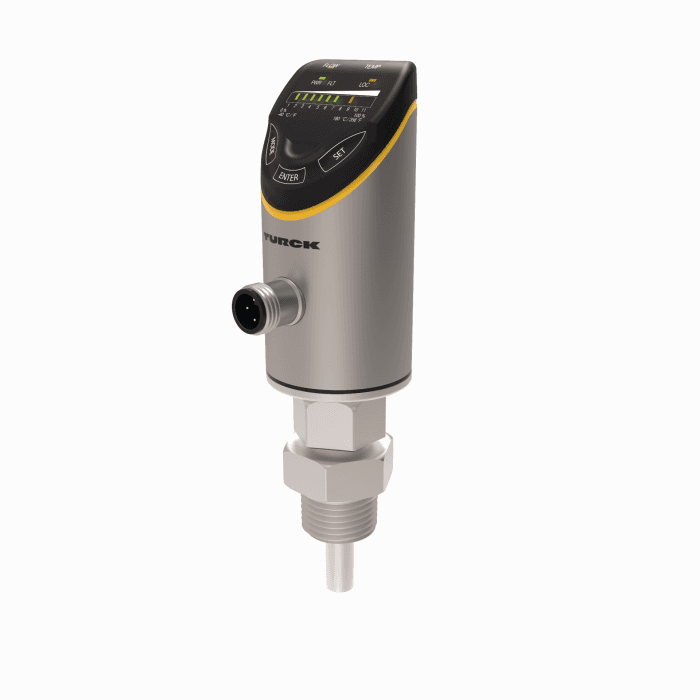

Flow Sensor

FS100-300L-30-2UPN8-H1141

Order ID no. 100000970

Protection class: IP66, IP67, IP69K
Switching element function: NO/NC programmable
Output function: PNP/NPN
Approvals: CE, cULus
Design: With display (integrated probe)
Process connection: G 1/2″ male thread
Immersion depth L (mm): 16.9
Medium: liquids
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Media temperature min. (°C): -25
Media temperature max. (°C): 85
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Mounting conditions: Immersion sensor
Electrical output: 2 × switching output, IO-Link

In Stock
List Price	A$796.72
