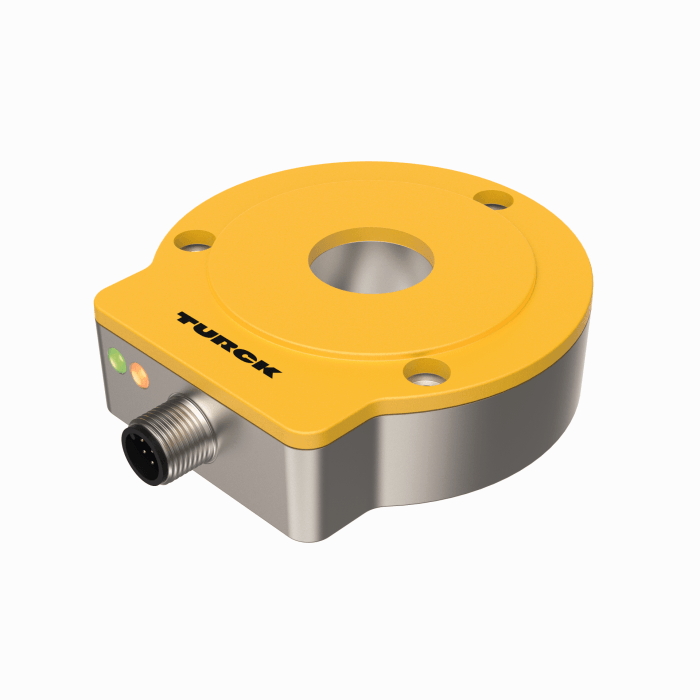

Contactless Encoder
RI360P0-QR24M0-5000X2-H1181
Order ID no. 1593159| In Stock | |
| Price Group | G1 |
| List Price | A$695.86 |
Item TotalA$695.86
Quantity
- Output function
- Push-Pull/HTL
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Metal/plastic
- Housing quality
- ZnAlCu1/PBT-GF30-V0
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 85
- Protection class
- IP68, IP69K
- Measuring principle
- Inductive
- Operating voltage
- DC
- Output type
- Incremental
- Flange type
- Flange without mounting element
- Resolution incremental (ppr)
- 5000
- Shaft Type
- Hollow shaft
- Shaft diameter D (mm)
- 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Key Features
- Output type
- Incremental
- Shaft diameter D (mm)
- 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
- Shaft Type
- Hollow shaft
