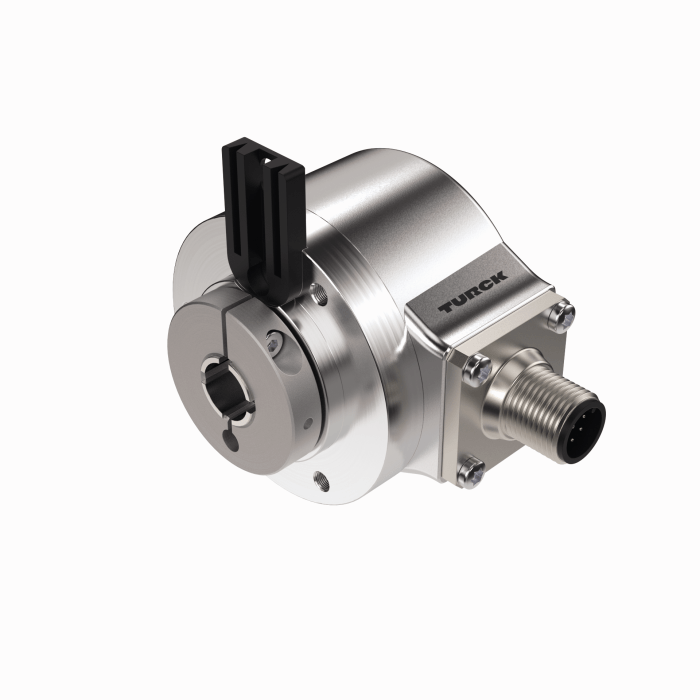

Incremental Encoder
REI-E-114I10T-2B360-H1181
Order ID no. 100011672| In Stock | |
| List Price | A$536.69 |
Item TotalA$536.69
Quantity
- Protection class
- IP64
- Output function
- Push-Pull/HTL
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Die-cast zinc
- Ambient temperature min.
- -20
- Ambient temperature max.
- 70
- Measuring principle
- Optical
- Output type
- Incremental
- Shaft Type
- Hollow shaft
- Shaft diameter D (mm)
- 10
- Flange diameter
- 50.8
- Flange type
- Flange with mounting element
- Resolution, incremental
- 360
Key Features
- Output type
- Incremental
- Flange diameter
- 50.8
- Shaft diameter D (mm)
- 10
- Shaft Type
- Hollow shaft
