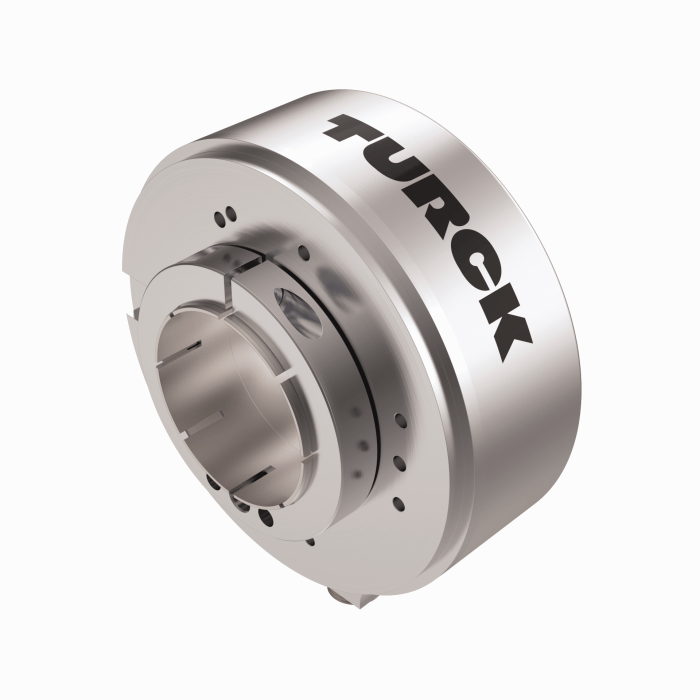

Incremental Encoder
REI-43H40S-2B1500-H1181
Order ID no. 100011461
home
Home
Loading...
Technical Data
Output function
Push-Pull/HTL
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min.
-40
Ambient temperature max.
80
Protection class
IP65
Measuring principle
Optical
Output type
Incremental
Flange type
Flange without mounting element
Resolution, incremental
1500
Shaft Type
Blind hole shaft
Flange diameter
100
Shaft diameter D (mm)
40
Key Features
Output type
Incremental
Flange diameter
100
Shaft diameter D (mm)
40
Shaft Type
Hollow shaft
home
Turck-Shop
Sensors
Encoders
REI-43H40S-2B1500-H1181
Item Total
A$1,847.91
Quantity
−
+
add_shopping_cart
Add to Cart
In Stock
List Price
A$1,847.91
