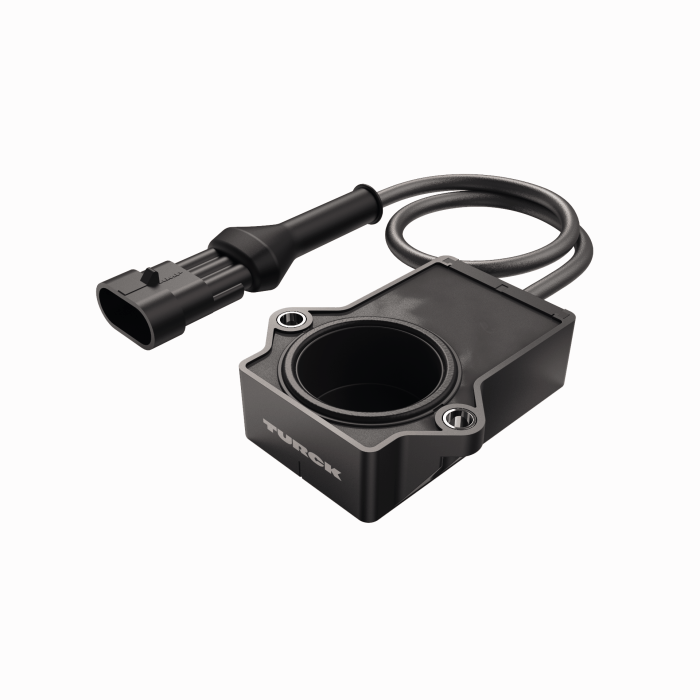

Miniature Encoder
RI120P1-QR20-LU4X2-0.24-AMP01-3P
Order ID no. 100000199
home
Home
Loading...
Technical Data
Output function
Analog output
Electrical connection
Cable with connector
Connector type
AMP Superseal
Cable length (m)
0.24
Housing material
Plastic
Housing quality
Ultem
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Protection class
IP68, IP69K
Design
Rectangular
Measuring principle
Inductive
Operating voltage
DC
Measuring range
-60…60°
Output type
Absolute singleturn
Flange type
Flange without mounting element
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
6, 6.35
Key Features
Output type
Absolute singleturn
Shaft diameter D (mm)
6, 6.35
Shaft Type
Blind hole shaft
home
Turck-Shop
Sensors
Encoders
RI120P1-QR20-LU4X2-0.24-AMP01-3P
In Stock
Price Group
G1
List Price
A$287.72
Item Total
A$287.72
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
