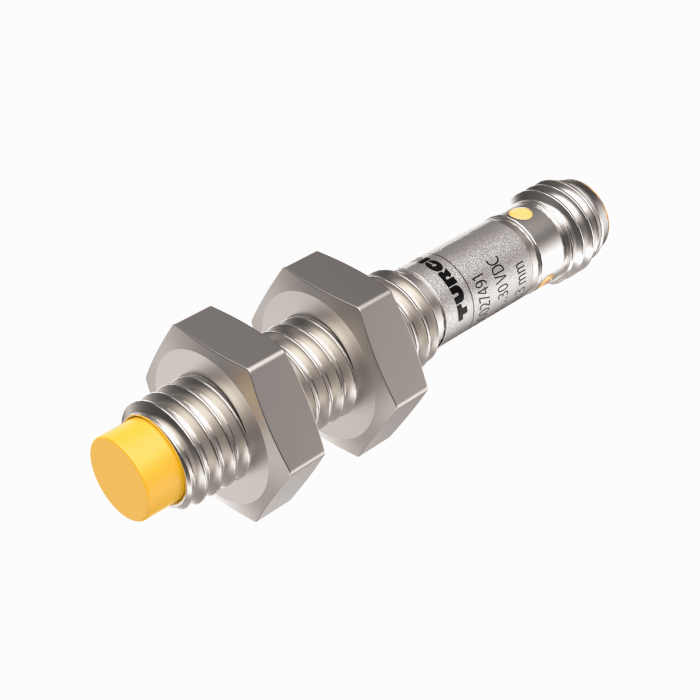

Capacitive Sensor
NCT3-M08-IOL-V1131
Order ID no. 100027491| In Stock | |
| List Price | A$477.31 |
Item TotalA$477.31
Quantity
- Protection class
- IP67
- Switching element function
- NO/NC programmable
- Output function
- PNP/NPN
- Design
- Threaded barrel
- Medium
- liquids, Bulk goods
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M8 × 1
- Housing material
- Metal
- Housing quality
- Nickel-plated brass
- Media temperature min. (°C)
- -25
- Media temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Measuring principle
- Capacitive
- Mounting conditions
- Flush/Non-flush
- Rated switching distance (mm)
- 3
- Construction size
- M8 x 1
Key Features
- Electrical connection
- Connector
- Mounting conditions
- Flush/Non-flush
- Output function
- PNP/NPN
- Rated switching distance (mm)
- 3
