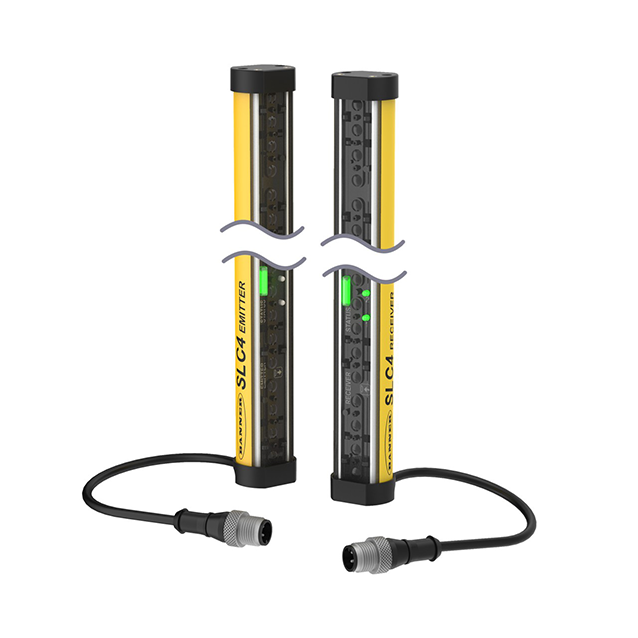

Safety Light Curtain
SLC4P24-160P44
Order ID no. 3805795
home
Home
Loading...
Technical Data
Function
Light screen
Light type
IR
Switching element function
NC contact
Output function
2 × PNP
Electrical connection
Cable with connector
Connector type
M12 × 1
Cable length (m)
0.3
Housing material
Plastic
Housing quality
PC
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Protection class
IP65
Design
Rectangular
Scan field (mm)
160
Optical resolution (mm)
24
Cascadable
No
With muting function
No
Start/Restart interlock
no
Coding level/tamper protection
Uncoded
Max. range (mm)
2000
Approvals
CE, cULus
Key Features
Cascadable
No
Scan field (mm)
160
Optical resolution (mm)
24
In Stock
Price Group
BE30
List Price
A$882.15
