Safety Light Curtain
SLSR30-150P8
Order ID no. 3073892| In Stock | |
| Price Group | BE30 |
| List Price | A$1,148.59 |
Item TotalA$1,148.59
Quantity
- Function
- Light screen
- Switching element function
- 2 x NC contact
- Output function
- 2 × PNP
- Electrical connection
- Cable with connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 50
- Protection class
- IP65
- Design
- Rectangular
- Scan field (mm)
- 150
- Optical resolution (mm)
- 30
- Number of beams
- 10
- Cascadable
- No
- With muting function
- No
- Start/Restart interlock
- adjustable
- Max. range (mm)
- 18000
- Construction size

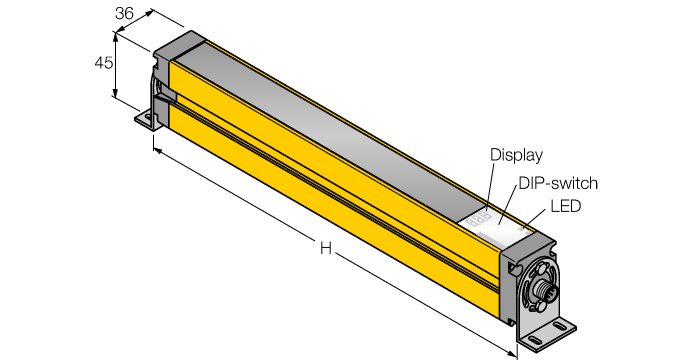

- 45 x 36 x 262 mm
Key Features
- Cascadable
- No
- Scan field (mm)
- 150
- Optical resolution (mm)
- 30
- Number of beams
- 10
