Light Screen for Machine Safety Applications
LS2LP30-750Q88
Order ID no. 3073568| In Stock | |
| List Price | A$3,822.59 |
Item TotalA$3,822.59
Quantity
- Protection class
- IP65
- Switching element function
- 2 x NC contact
- Output function
- 2 × PNP
- Design
- Rectangular
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 55
- Max. range (mm)
- 15000
- Function
- Light screen
- Scan field (mm)
- 750
- Optical resolution (mm)
- 30
- Light type
- IR

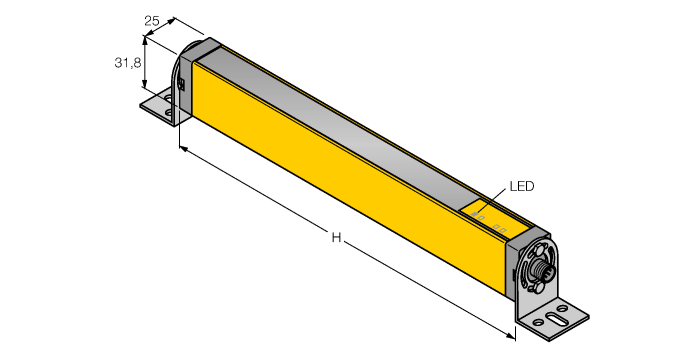

- Construction size
- 31.8 x 25.2 x 815 mm
- Cascadable
- No
- Start/Restart interlock
- yes
- With muting function
- No
- Number of beams
- 40
Key Features
- Cascadable
- No
- Scan field (mm)
- 750
- Optical resolution (mm)
- 30
- Number of beams
- 40
