LS2TP30-1500Q88 | TURCK - Your Global Automation Partner

Light Screen for Machine Safety Applications

LS2TP30-1500Q88

Order ID no. 3073553

homeHome
Loading...

Function: Light screen
Light type: IR
Switching element function: 2 x NC contact
Output function: 2 × PNP
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: AL
Ambient temperature min. (°C): 0
Ambient temperature max. (°C): 55
Protection class: IP65
Design: Rectangular
Scan field (mm): 1500
Optical resolution (mm): 30
Number of beams: 80
Cascadable: No
With muting function: No
Start/Restart interlock: no
Max. range (mm): 15000

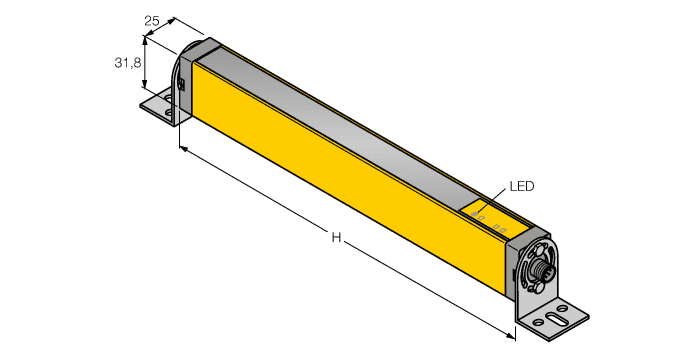

Construction size: 31.8 x 25.2 x 1563 mm

Key Features

Cascadable: No
Scan field (mm): 1500
Optical resolution (mm): 30
Number of beams: 80

In Stock
Price Group	BE30
List Price	A$6,419.87
