PVL500PQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVL500PQ
Order ID no. 3032311
home
Home
Loading...
Technical Data
Function
Retroreflective Sensor
Light type
Red
Switching element function
NO contact
Output function
PNP
Electrical connection
Cable with connector
Connector type
M12 × 1
Cable length (m)
2
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
50
Protection class
IP50
Design
Rectangular
Scan field (mm)
500
Optical resolution (mm)
70
Number of beams
8
Max. range (mm)
1500
Operating voltage
DC
Construction size

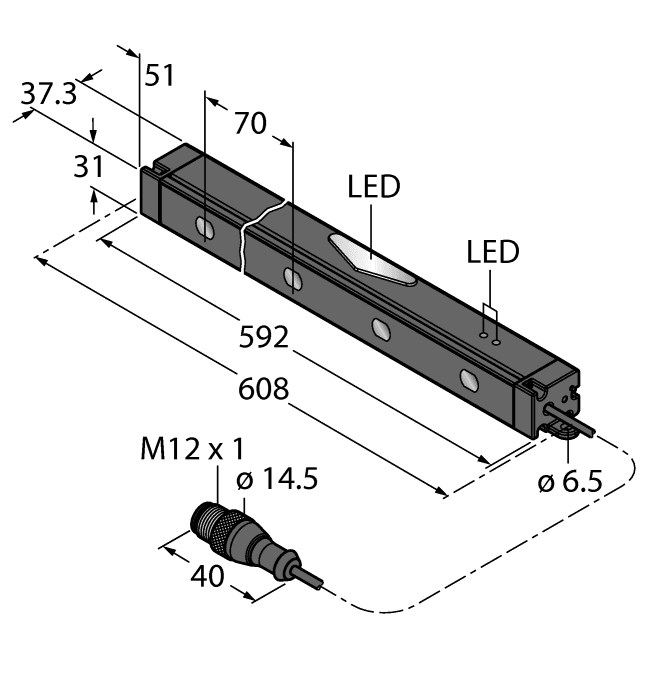

608 x 31 x 37.3 mm
Input type
PNP
Number of colors/segments
2
Key Features
Scan field (mm)
500
Light type
Red
Output function
PNP
Number of colors/segments
2
home
Turck-Shop
Lighting and Indicators
Pick-to-Light
PVL500PQ
In Stock
Price Group
BE60
List Price
A$1,108.59
Item Total
A$1,108.59
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
