PVL225NQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVL225NQ
Order ID no. 3026208
home
Home
Loading...
Technical Data
Function
Retroreflective Sensor
Light type
Red
Switching element function
NO contact
Output function
NPN
Electrical connection
Cable with connector
Connector type
M12 × 1
Cable length (m)
2
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
50
Protection class
IP50
Design
Rectangular
Scan field (mm)
225
Optical resolution (mm)
70
Number of beams
4
Max. range (mm)
1500
Operating voltage
DC
Construction size

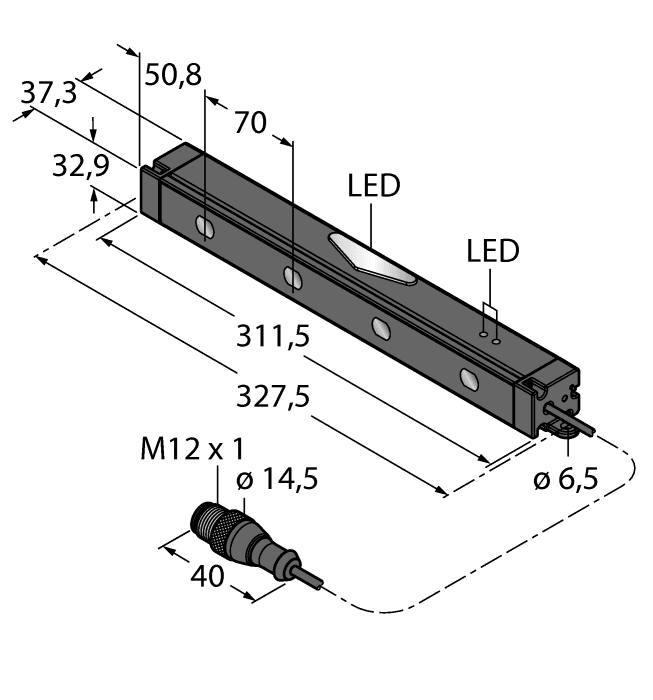

327.5 x 31 x 37.3 mm
Input type
minus‐schaltend
Number of colors/segments
2
Key Features
Scan field (mm)
225
Light type
Red
Output function
NPN
Number of colors/segments
2
In Stock
Price Group
BE60
List Price
A$723.81
