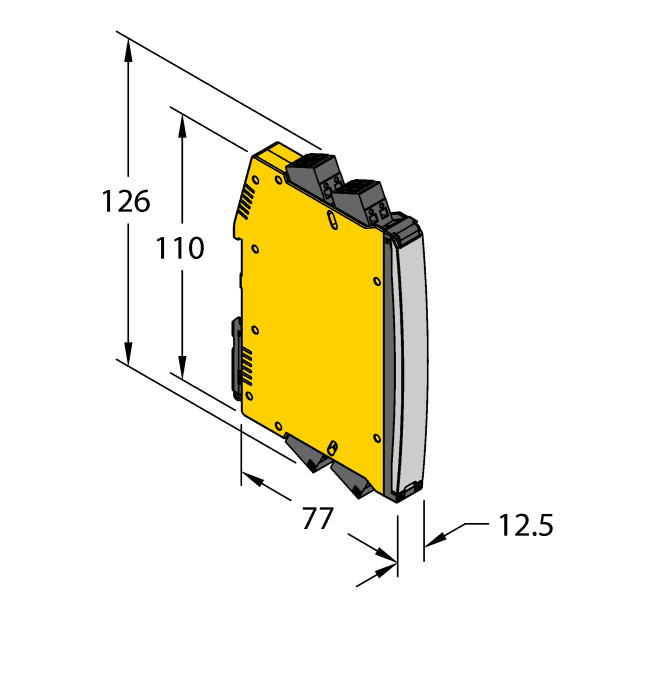

Isolating switching amplifier
IMXK12-DI01-1S-1PP-0/24VDC/CC
Order ID no. 100000684| In Stock | |
| List Price | A$385.04 |
Item TotalA$385.04
Quantity
- Protection class
- IP20
- Approvals
- ATEX, IECEx, cULus
- Electrical connection
- Removable spring-type terminals, 2-pin
- Housing material
- Plastic
- Housing quality
- Polycarbonate/ABS
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Power supply
- 24 VDC
- Number of channels
- 1
- Ex version
- yes
- Signal type
- Digital input
- Nominal voltage
- 24 VDC
- Approvals
- ATEX
- Digital output
- Push-pull output
Key Features
- Approvals
- ATEX
- Number of channels
- 1
- Signal type
- Digital input
- Nominal voltage
- 24 VDC
