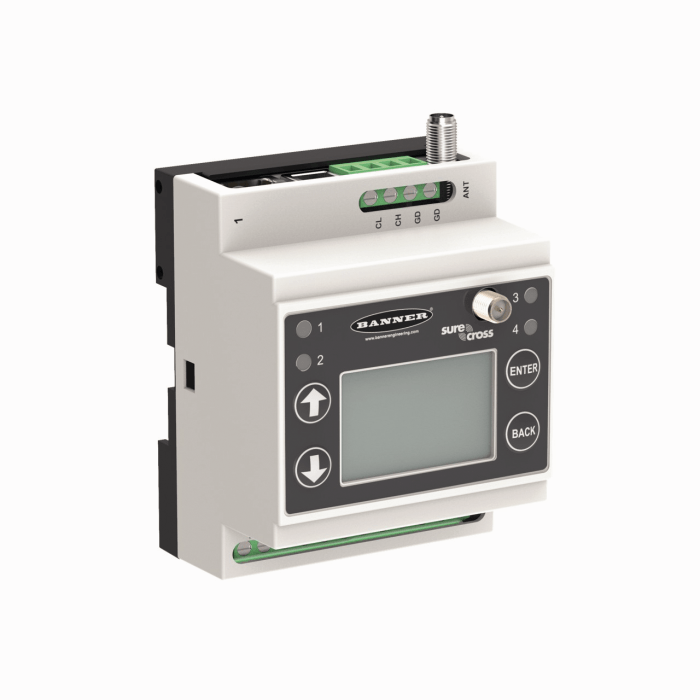

Network Controller

DXM700-B1R4

Order ID no. 3806249

Function: Tree topology
Switching element function: Programmable
Output function: PNP/NPN, analog output
Communication protocol: EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, RS485
Electrical connection: Screw terminals
Housing material: Plastic
Housing quality: PC
Ambient temperature min. (°C): -20
Ambient temperature max. (°C): 60
Protection class: IP20
Design: Rectangular
Max. range (mm): 3200000
Operating voltage: DC
Antenna connection: RP-SMA female connector
Runs with battery: No
Output type: PNP

Communication protocol: EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, RS485
Function: Tree topology
Output type: PNP
