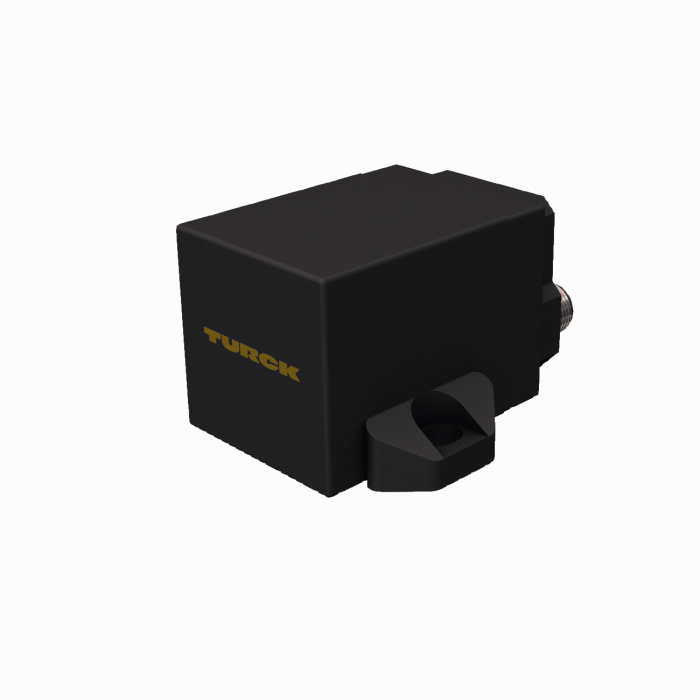

HF Read/Write Head
TNSLR-Q42TWD-H1147
Order ID no. 7030424| In Stock | |
| List Price | A$2,469.47 |
Item TotalA$2,469.47
Quantity
- Protection class
- IP68, IP69K
- Switching element function
- Read/Write
- Network protocol
- Connection to RFID interface
- Approvals
- CE, UKCA, UL
- Design
- Rectangular
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- PA12-GF30
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Mounting conditions
- Non-flush
- Operating voltage
- DC
- Read/Write distance max. (mm)
- 215
- Construction size

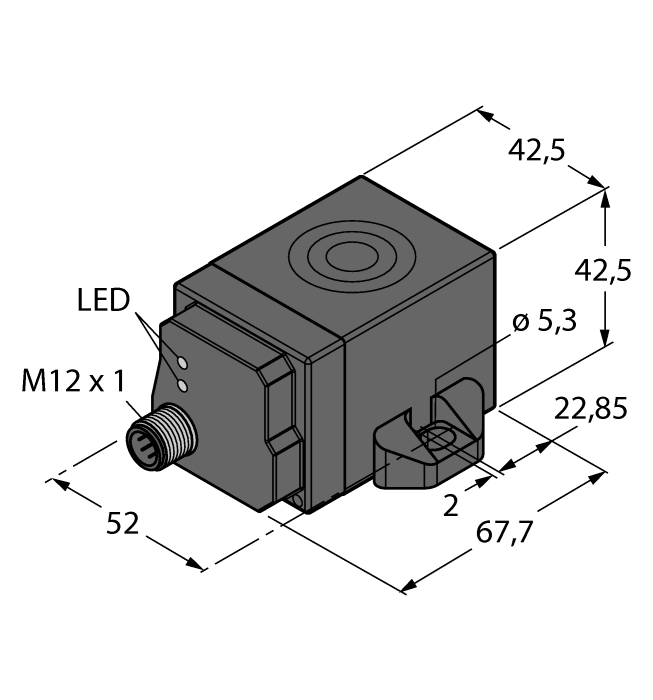

- 67.7 x 42.5 x 42.5 mm
Key Features
- Network protocol
- Connection to RFID interface
- Protection class
- IP68, IP69K
- Read/Write distance max. (mm)
- 215
